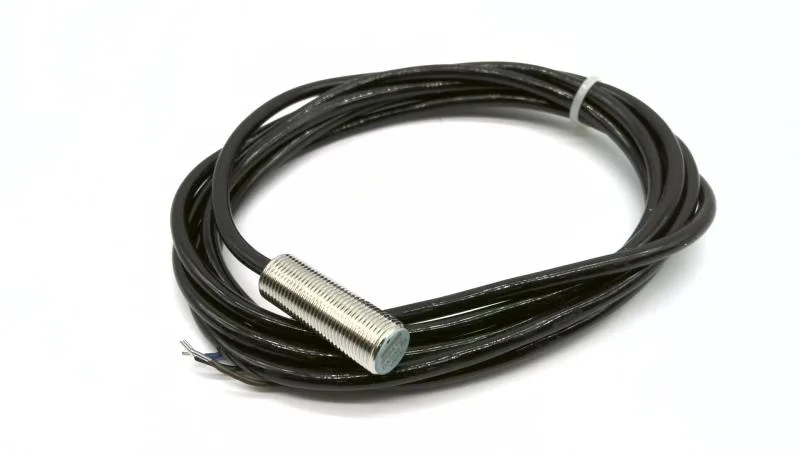

Siemens 3RG41 12-0AG01 inductive sensor, M12 cylindrical, PNP normally open, 4 mm sensing range, 200 mA, 10-34 V DC, cable.
| Parameter | Value |
|---|---|
| Type | Inductive Sensor |
| Parameter | Value |
|---|---|
| Switching output | Normally open |
| Parameter | Value |
|---|---|
| Housing material | Nickel-plated brass |
| Parameter | Value |
|---|---|
| Model | 3RG41 12-0AG01 |
| Weight | 0,08 kg |
| Housing | Cylindrical |
| Condition | New |
| Shelf no. | 230205 |
| Dimensions | M12 Diameter |
| Sensing distance | 4 mm |
| Connector type | Cable |
| Current rating | 200 mA |
| Electrical design | PNP |
| Operating voltage | 10 … 34 V DC |
Siemens 3RG41 12-0AG01 is an M12 cylindrical inductive sensor with PNP normally open output, rated for 200 mA switching current and operating voltage 10…34 V DC. The nickel-plated brass housing and 4 mm flush sensing range make it suitable for position detection on ferrous targets in tight spaces. N.O. output and cable connection simplify wiring to a PLC input or relay coil.
