AS-Interface slave with 4 inputs and 4 outputs

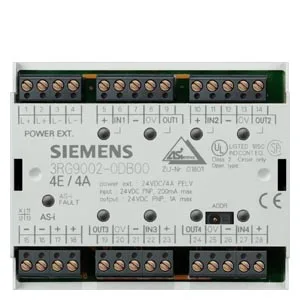

The Siemens 3RG9002-0DB00 is an AS-Interface slave module providing 4 digital inputs (PNP, 2- and 3-conductor) and 4 solid-state digital outputs, all in a compact F90 housing for control-cabinet mounting on 35 mm standard DIN rail. The module draws its internal power from the AS-Interface bus (max 270 mA total input), while the output circuits require a separate 24 V DC auxiliary supply (20–30 V DC, PELV per VDE 0106) connected via screw terminals. Built-in watchdog, induction protection, and short-circuit protection mean the module handles diagnostics and fault isolation without external components — the green/red dual LED reports AS-Interface communication status, and yellow LEDs show each I/O state.
End-of-life status and sourcing
Available through independent surplus and broker channels. No stock-holding claim is made here.
Dimensions are 90 mm wide, 75 mm high, 37 mm deep — the F90 module footprint fits standard control-cabinet DIN-rail layouts. IP20 protection means it is intended for enclosed cabinet use, not washdown or outdoor exposure. The module is addressed via the integrated addressing socket, and the I/O configuration code is set to 7 with ID/ID2 code 0/F.
