Siemens 3RH1122-1AF00 — Contactors

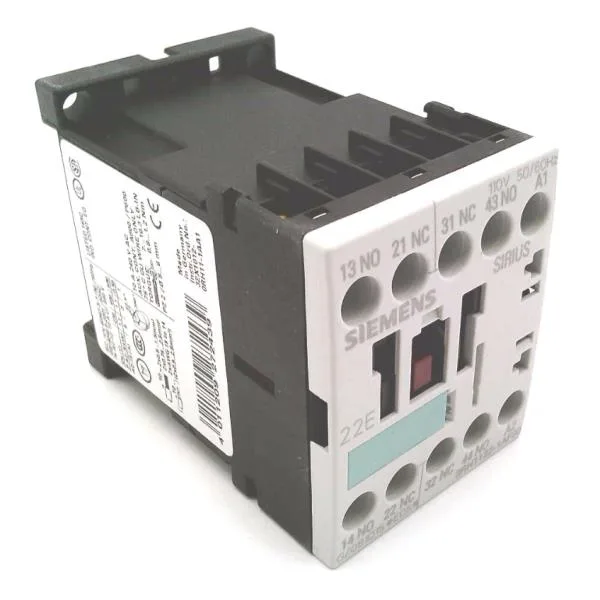

Siemens SIRIUS 3RH1122-1AF00 Auxiliary Contactor, 10 A at 24

MPN3RH1122-1AF00

Siemens SIRIUS auxiliary contactor, S00 size, 4-pole, 10 A at 24 V, 6 A at 230 V, IP20 front, screw and snap-on mounting.

$53.34Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RH1122-1AF00 — Identification
ParameterValue
Contactor frame sizeS00
3RH1122-1AF00 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 110 V1 A
Rated value @ 220 V0.27 A
3RH1122-1AF00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.8 ... 1.1
Rated value @ 50 Hz110 V
3RH1122-1AF00 — Contacts & Poles
ParameterValue
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RH1122-1AF00 — Connection & Mounting
ParameterValue
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting
3RH1122-1AF00 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RH1122-1AF00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RH1122-1AF00 — Mechanical
ParameterValue
Width45 mm
Height57.5 mm
Depth72 mm

Product details

It carries 4 instantaneous contacts (2 NO + 2 NC) and is designed for screw or snap-on mounting on a DIN rail.

The auxiliary contactor is rated 10 A at 24 V (AC/DC) and 6 A at 230 V, with a derating curve down to 1 A at 690 V. For a 24 VDC control circuit, the 10 A rating gives headroom for pilot duty up to NEMA A600 or IEC AC-15/DC-13 loads. The 6 A at 230 V covers most contactor coil and indicator lamp circuits in European panels. The S00 frame size — 45 mm wide, 57.5 mm tall, 72 mm deep — fits the standard Siemens 3RT1 contactor footprint, so it can be ganged alongside a 3RT1 power contactor without extra DIN rail space.

The 3RH1122-1AF00 is a direct drop-in for any panel designed around the SIRIUS S00 auxiliary contactor family.

The part carries RoHS compliance with a substance prohibition date of 01.07.2006, and is assigned reference code K per IEC 81346-2.

Frequently asked questions

Will the 3RH1122-1AF00 fit a panel designed for a 3RT1015-1AG61 contactor?

Both parts share the S00 frame size and the same 45 mm width, 57.5 mm height, and 72 mm depth. The 3RH1122-1AF00 is an auxiliary contactor that can be ganged alongside a 3RT1 power contactor on the same DIN rail without extra space. However, it is not a direct functional replacement — the 3RT1015-1AG61 is a power contactor with different coil voltage and main contact ratings. The 3RH1122-1AF00 serves as the auxiliary contact block for signalling and control.
