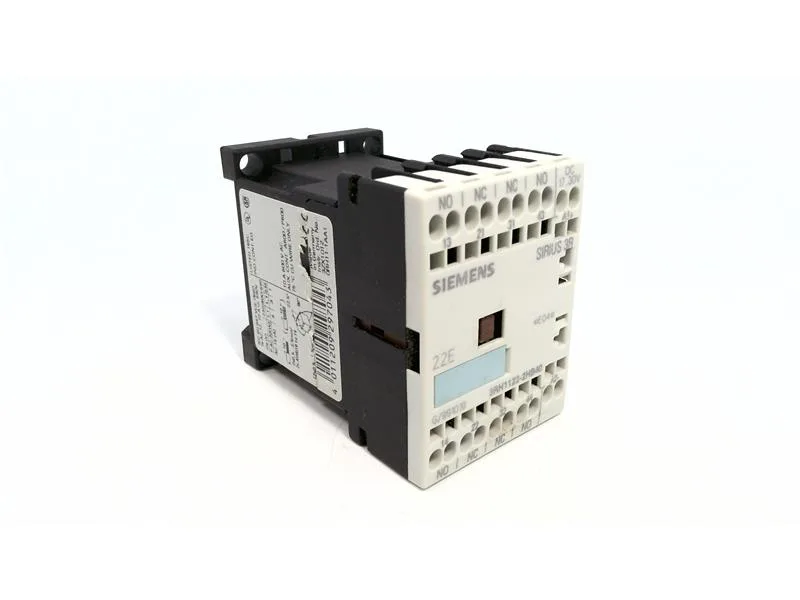

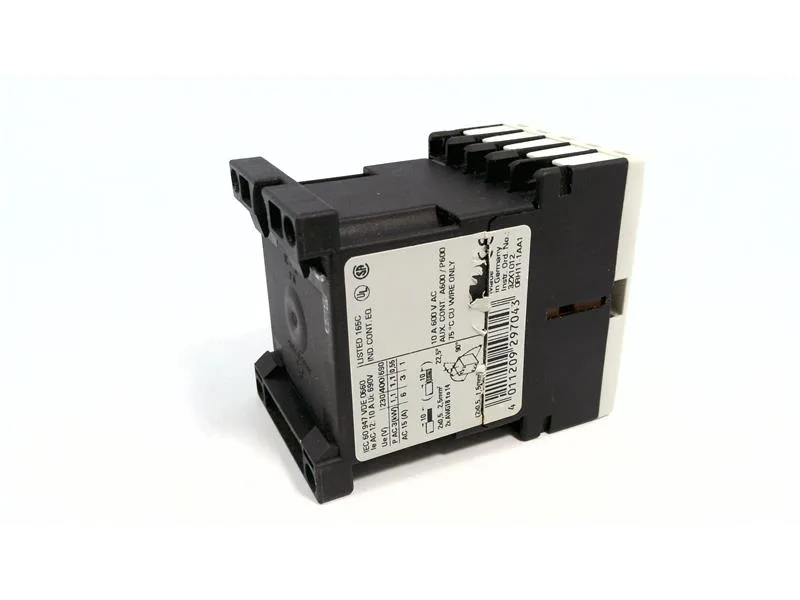

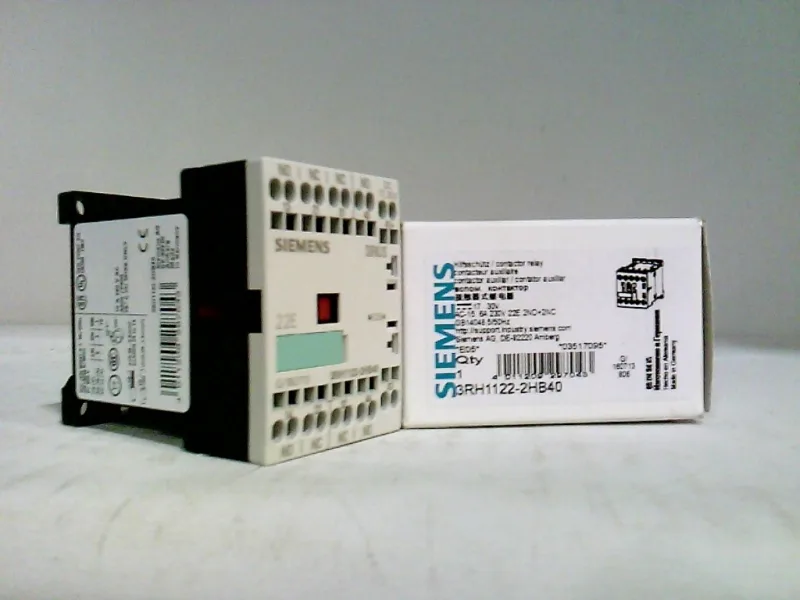

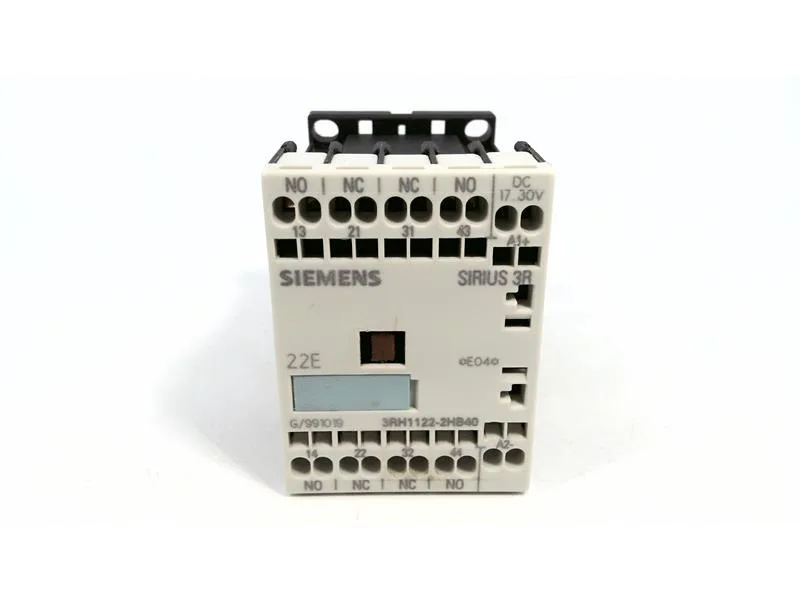

Siemens 3RH1122-2HB40
MPN3RH1122-2HB40
Contactor relay, 2 NO + 2 NC 24 V DC 0.7...1.25* Us Spring-type terminal Size S00!!! Phased-out product!!! Successor is SIRIUS 3RH2 Preferred successor type is >>3RH2122-2HB40<<
$82.19Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Contactor frame size | S00 |
Ratings & Performance
| Parameter | Value |
|---|---|
| Rated value @ 24 V | 10 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.27 A |
Control & Coil
| Parameter | Value |
|---|---|
| Control supply voltage type | DC |
Contacts & Poles
| Parameter | Value |
|---|---|
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
Protection & Coordination
| Parameter | Value |
|---|---|
| Aux. switch short-circuit protection, fuse | fuse gL/gG: 10 A |
Connection & Mounting
| Parameter | Value |
|---|---|
| Conductor cross-section, solid | 2x (0.25 ... 2.5 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.25 ... 1.5 mm²) |
Durability
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 30 000 000 |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
Mechanical
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 60 mm |
| Depth | 73 mm |
MPN
3RH1122-2HB40
