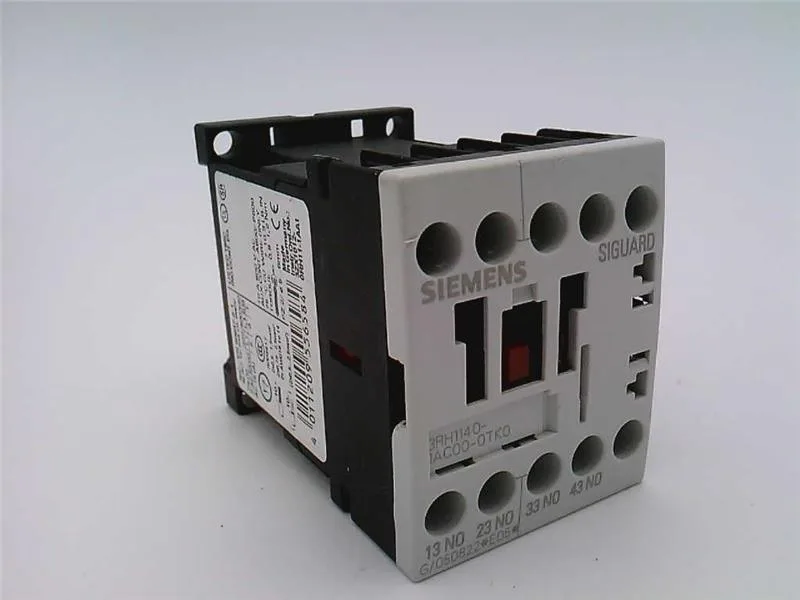

Siemens SIRIUS auxiliary contactor, 3RH1140-1AC00-0TK0, 4 NO instantaneous contacts, size S00, 45 mm width, screw and snap-on mounting, IP20 front.
| Parameter | Value |
|---|---|
| Contactor frame size | S00 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 2 A |
| Rated value @ 690 V | 1 A |
| Rated value @ 230 V | 6 A |
| Rated value @ 24 V | 10 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.27 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 0.8 ... 1.1 |
| Rated value @ 50 Hz | 32 V |
| Parameter | Value |
|---|---|
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Conductor cross-section, solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm² |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 30 000 000 |
| Durability with aux. switch block (cycles, typ.) | 10 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 57.5 mm |
| Depth | 72 mm |
The front carries IP20 protection, so it's suited for enclosed control panels where accidental finger contact is the concern.
Rated operational current varies by voltage and frequency: 10 A at 24 V, 6 A at 230 V, 3 A at 400 V, and 1 A at 690 V. At 50 Hz the coil hold-in range is 0.8–1.1 times rated voltage; at 60 Hz it's 0.85–1.1.
Shock resistance is 10g / 5 ms and 5g / 10 ms.
This part is sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.
It has four normally open instantaneous contacts, with no delayed or lagging switching, and no make-before-break function.
The depth is 72 mm, width 45 mm, height 57.5 mm — size S00 footprint.
The evidence includes a substance prohibition date of 07/01/2006, indicating RoHS compliance. The product brand is Siemens SIRIUS; standard IEC/EN certifications apply for auxiliary contactors of this class.
