Siemens 3RH1140-1AR60 — Contactors

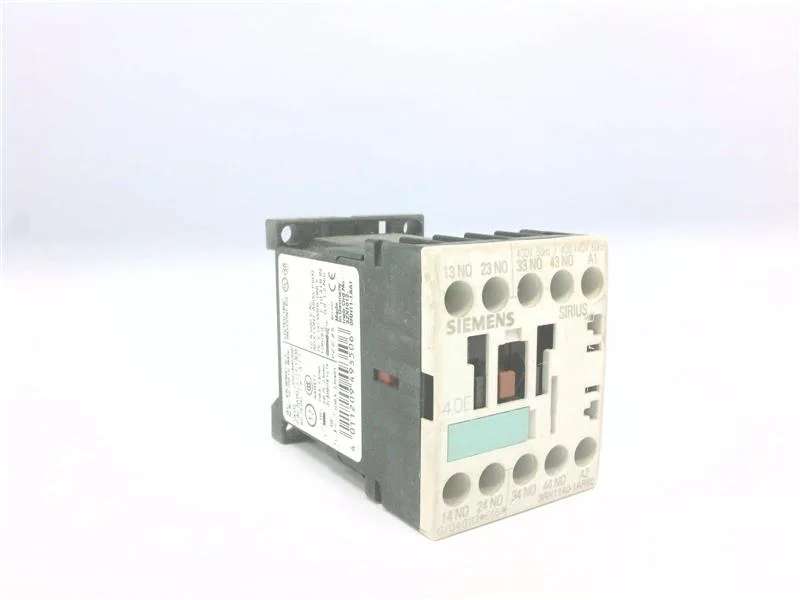

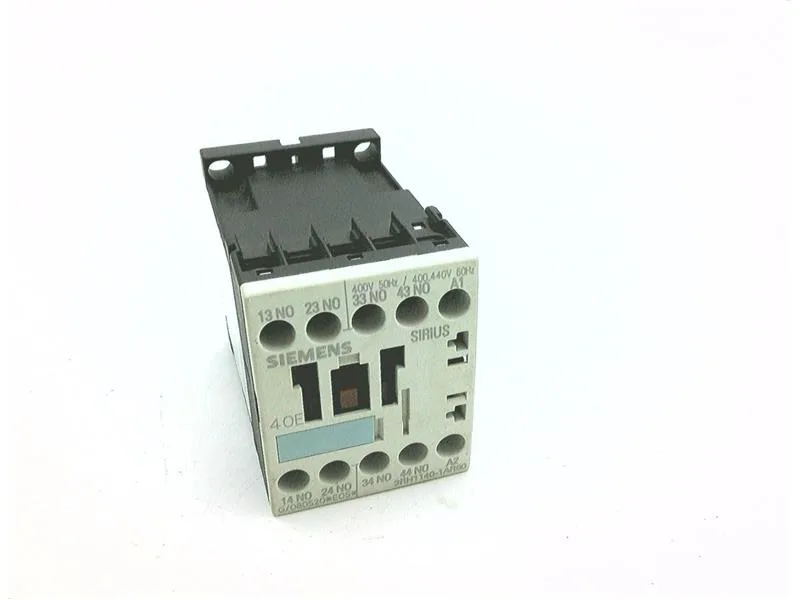

Siemens 3RH1140-1AR60 SIRIUS Auxiliary Contactor, 4 NO, Size

MPN3RH1140-1AR60

Siemens SIRIUS auxiliary contactor, 4 NO contacts, Size S00, 45 mm width, screw and snap-on mounting, IP20 front, rated 10 A at 24 V.

$26.75Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RH1140-1AR60 — Identification
ParameterValue
Contactor frame sizeS00
3RH1140-1AR60 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 110 V1 A
Rated value @ 220 V0.27 A
3RH1140-1AR60 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.8 ... 1.1
Rated value @ 50 Hz400 V
3RH1140-1AR60 — Contacts & Poles
ParameterValue
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RH1140-1AR60 — Connection & Mounting
ParameterValue
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting
3RH1140-1AR60 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RH1140-1AR60 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RH1140-1AR60 — Mechanical
ParameterValue
Width45 mm
Height57.5 mm
Depth72 mm

Product details

It's built for control-circuit logic — extending a contactor or relay stack with extra NO poles for PLC inputs, pilot lights, or interlocking.

Ratings that matter for the fit

Rated operational current is 10 A at 24 V, dropping to 6 A at 230 V and 3 A at 400 V — so at line voltage the contacts handle a 3 A resistive load, not the full 10 A you see at 24 V. The coil circuit is rated for 0.8–1.1 A at 50 Hz and 0.85–1.1 A at 60 Hz, which governs the control transformer sizing. Pollution degree 3 means it's suited for the conductive-dust and humidity you get in a typical control cabinet, not a clean room.

That helps when you're packing a dense panel and the DIN rail isn't perfectly level. Conductor cross-sections accepted are 2x 0.5–1.5 mm², 2x 0.75–2.5 mm², or 2x 4 mm² solid — covers most control wiring with room for daisy-chaining. Dimensions are 45 mm wide, 57.5 mm high, 72 mm deep, so it fits the standard S00 footprint.

Frequently asked questions

Who supplies 3RH1140-1AR60 and how is it quoted?

It is sourced and quoted to order through independent distribution. Availability and current pricing are confirmed at quote time against an RFQ — no stock or price figures are published here.

What compliance documentation does Siemens provide for 3RH1140-1AR60?

The part carries a RoHS compliance date of July 1, 2006, meeting EU substance restrictions. It also meets pollution degree 3 per IEC 60947-1, and surge voltage resistance of 6 kV per IEC 60947.

Will 3RH1140-1AR60 drop into a panel specified around 3RH2440-1AP00 without rewiring?

No — the 3RH2440-1AP00 is a different contactor configuration. The 3RH1140-1AR60 is a 4 NO auxiliary contactor, while the 3RH2440-1AP00 has a different contact arrangement. Check the specific contact count and terminal layout of your existing panel before substituting.
