Siemens 3RH1140-2AV00 — Contactors

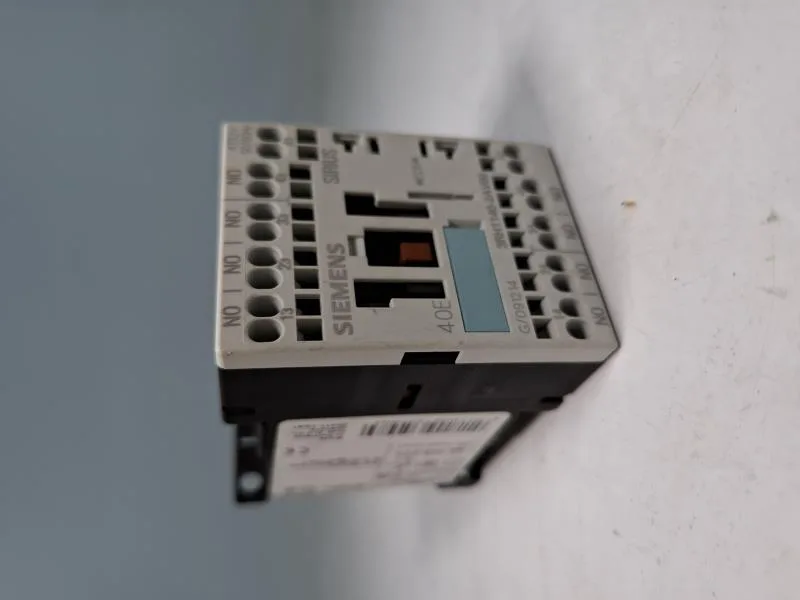

Siemens 3RH1140-2AV00 SIRIUS Auxiliary Contactor, 4 NO, S00

MPN3RH1140-2AV00

Siemens SIRIUS auxiliary contactor, 3RH1140-2AV00, 4 NO instantaneous contacts, size S00, 45 mm width, screw and snap-on mounting, IP20 front.

$29.10Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RH1140-2AV00 — Identification
ParameterValue
Contactor frame sizeS00
3RH1140-2AV00 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 110 V1 A
Rated value @ 220 V0.27 A
3RH1140-2AV00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.8 ... 1.1
Rated value @ 50 Hz400 V
3RH1140-2AV00 — Contacts & Poles
ParameterValue
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RH1140-2AV00 — Connection & Mounting
ParameterValue
Conductor cross-section, solid2x (0.25 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.25 ... 1.5 mm²)
Mounting methodscrew and snap-on mounting
3RH1140-2AV00 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RH1140-2AV00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RH1140-2AV00 — Mechanical
ParameterValue
Width45 mm
Height60 mm
Depth73 mm

Product details

It carries 4 normally-open instantaneous contacts, meaning all four close together when the coil picks up, with no make-before-break or delayed switching in the path. The contacts are rated for 10 A at 24 V, stepping down to 6 A at 230 V and 3 A at 400 V, so the thermal capacity follows the expected derating curve for a size S00 block. The S00 frame size tells you it mates physically with the S00 contactor range — same footprint, same rail slot.

The 4 NO contact arrangement is the most common auxiliary block for signalling 'contactor closed' back to a PLC or for interlocking a second device. Because there are no NC contacts built in, you need a separate block if your circuit requires a normally-closed feedback path. Contact reliability is specified as one incorrect switching operation per 100 million cycles at 17 V, 1 mA — that is the dry-circuit reliability figure. If you are switching low-energy signals (PLC inputs, sensor power), this block will not give you intermittent opens. The mechanical endurance of 30 million operations means it outlasts most main contactors it will be paired with.

Frequently asked questions

What compliance documentation does this part carry?

The evidence lists a substance prohibitance date of 07/01/2006, indicating RoHS compliance. The IP20 front protection and 6 kV surge voltage resistance are documented. For specific UL, CSA, or IEC certificates, the datasheet and manufacturer declaration should be referenced.

Will this drop into a panel designed for a 3RT1016-1AN22 contactor without rewiring?

The 3RH1140-2AV00 is a size S00 auxiliary contactor, same frame size as the 3RT1016-1AN22 main contactor. It shares the same 45 mm width and screw/snap-on DIN rail mounting. The auxiliary block mounts directly onto or alongside the main contactor without panel modification. Wiring the 4 NO contacts to the control circuit is straightforward, but verify your specific terminal numbering against the panel schematic.
