Siemens 3RH1271-1AK60 — Contactors

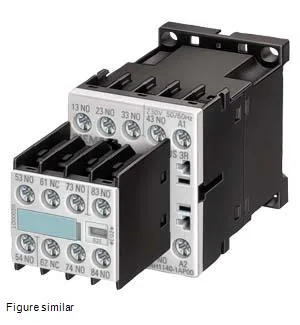

Siemens SIRIUS 3RH1271-1AK60 Auxiliary Contactor, Size S00,

MPN3RH1271-1AK60

Siemens SIRIUS auxiliary contactor, size S00, 7 NO + 1 NC, screw and snap-on mounting, IP20, 111 mm depth.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RH1271-1AK60 — Identification
ParameterValue
Contactor frame sizeS00
3RH1271-1AK60 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 110 V1 A
Rated value @ 220 V0.27 A
3RH1271-1AK60 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.8 ... 1.1
Rated value @ 50 Hz110 V
3RH1271-1AK60 — Contacts & Poles
ParameterValue
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RH1271-1AK60 — Connection & Mounting
ParameterValue
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting
3RH1271-1AK60 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
3RH1271-1AK60 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RH1271-1AK60 — Mechanical
ParameterValue
Width45 mm
Height57.5 mm
Depth111 mm

Product details

It carries 7 normally-open and 1 normally-closed instantaneous contacts, rated 10 A at 24 V and 6 A at 230 V, with a 6 kV surge voltage resistance. That many NO contacts means it can handle a lot of PLC inputs, pilot lights, or interlock signals off one coil without needing a second relay. That matters when you're squeezing it into a crowded panel and can't keep everything perfectly square.

The contact reliability spec is one incorrect switching operation per 100 million cycles at 17 V, 1 mA. The degree of pollution 3 rating confirms it can handle conductive dust and humidity typical of industrial cabinets near motors or conveyors. Solid conductor capacity is 2x (0.5...1.5 mm²), 2x (0.75...2.5 mm²), and 2x 4 mm² — that covers the common control-wiring gauges you'll pull for auxiliary circuits. The 111 mm depth is a standard S00 footprint, so it'll drop into any panel already laid out for SIRIUS contactors.

MPN
3RH1271-1AK60
