Siemens 3RH1362-2BB40 — Contactors

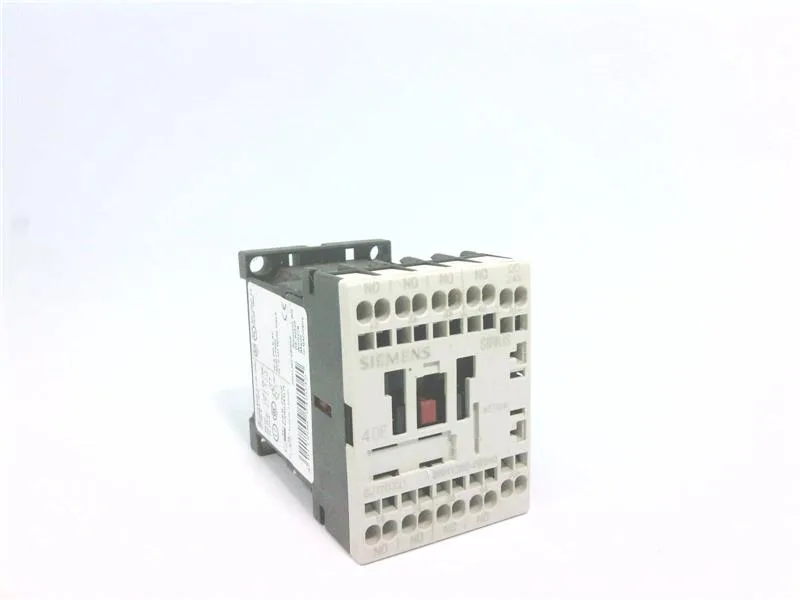

Siemens 3RH1362-2BB40 SIRIUS Auxiliary Contactor, 24 V DC, 6

MPN3RH1362-2BB40

Siemens SIRIUS auxiliary contactor, 3RH1362-2BB40, 24 V DC coil, 6 NO instantaneous contacts, size S00, screw and snap-on mounting, IP20 front.

$41.96Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RH1362-2BB40 — Identification
ParameterValue
Contactor frame sizeS00
3RH1362-2BB40 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 110 V1 A
Rated value @ 220 V0.27 A
3RH1362-2BB40 — Control & Coil
ParameterValue
Control supply voltage typeDC
3RH1362-2BB40 — Contacts & Poles
ParameterValue
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RH1362-2BB40 — Connection & Mounting
ParameterValue
Conductor cross-section, solid2x (0.25 ... 2.5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.25 ... 1.5 mm²)
Mounting methodscrew and snap-on mounting
3RH1362-2BB40 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000
3RH1362-2BB40 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RH1362-2BB40 — Mechanical
ParameterValue
Width45 mm
Height60 mm
Depth114 mm

Product details

The coil pulls 3.2 W DC and holds at the same power, which means the supply transformer or DC bus needs to budget that draw continuously while the contactor is energized.

The front is IP20-rated, so it's protected against accidental finger contact but not against washdown — keep it inside the cabinet.

The 6 NO contacts are rated for AC and DC switching across common control voltages: 10 A at 24 V, 6 A at 230 V, 3 A at 400 V, 2 A at 500 V, and 1 A at 690 V. That covers most 24 VDC PLC outputs and 230 VAC pilot-duty circuits in a single device. The contacts are instantaneous (no make-before-break or delayed action), so they switch cleanly with the coil state. The surge voltage withstand is 6 kV, adequate for industrial environments with moderate transient exposure.

This part is a standard catalog item from the Siemens SIRIUS line. It carries a substance prohibition date of 01.07.2006, aligning with RoHS compliance for lead and other restricted substances. No UL or CSA mark is listed in the evidence, but the IEC ratings cover most global installations outside North America — verify local code acceptance if the panel requires a UL-listed auxiliary contactor.

Frequently asked questions

What are the key dimensions of the 3RH1362-2BB40?

The contactor is 45 mm wide, 60 mm tall, and 114 mm deep — size S00 footprint.

What is the coil voltage and power consumption?

The coil is rated 24 V DC and draws 3.2 W closing and holding.
