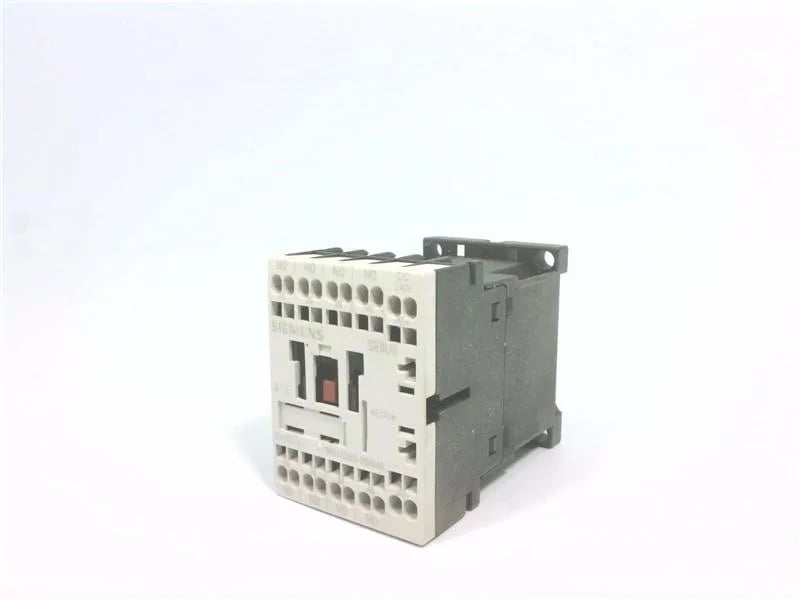

3RH1362-2CB00-0KA0-ZX95
MPN3RH1362-2CB00-0KA0-ZX95
Contactor relay, 24 V AC 50 Hz Spring-type terminal Size S00 With varistor plugged on 2 NO + 2 NC basic unit Reusable packaging Pack quantity = 102 units!!! Phased-out product!!! Successor is SIRIUS 3RH2
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Identification
| Parameter | Value |
|---|---|
| Contactor frame size | S00 |
Ratings & Performance
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 2 A |
| Rated value @ 690 V | 1 A |
| Rated value @ 230 V | 6 A |
| Rated value @ 24 V | 10 A |
| Rated value @ 110 V | 1 A |
| Rated value @ 220 V | 0.27 A |
Control & Coil
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 0.8 ... 1.1 |
| Rated value @ 50 Hz | 24 V |
Contacts & Poles
| Parameter | Value |
|---|---|
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
Connection & Mounting
| Parameter | Value |
|---|---|
| Conductor cross-section, solid | 2x (0.25 ... 2.5 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.25 ... 1.5 mm²) |
| Mounting method | screw and snap-on mounting |
Durability
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 10 000 000 |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
Mechanical
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 60 mm |
| Depth | 114 mm |
MPN
3RH1362-2CB00-0KA0-ZX95
