Rated operational current is 10 A maximum, with voltage-dependent ratings: 6 A at 24 V AC/DC, 6 A at 125 V, 6 A at 230 V, 3 A at 400 V, and 0.3 A at 220 V. For the AC-15 utilization category at 690 V, the rated value is 1 A — this is the inductive switching rating for solenoid and contactor coils at that voltage. The block uses screw-type terminals accepting 2x (0.5... 1.5 mm²) or 2x (0.75... 2.5 mm²) with core-end processing, or 2x (20... 16) and 2x (18... 14) AWG. Mechanical service life is 10 million switching cycles typical, with contact reliability of 1 faulty switching per 100 million operations at 17 V, 1 mA.

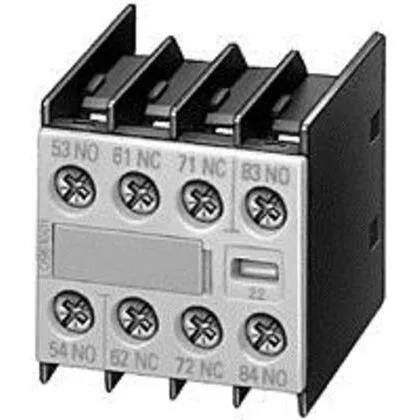

Snap-on mounting directly onto the contactor or relay — no tools required. The block measures 36.5 mm wide, 37.5 mm high, and 41.5 mm deep, fitting the S00 footprint. The block is intended for use with SIRIUS contactor relays and power contactors of size S00.
