3RH1911-2GA13 - Siemens
MPN3RH1911-2GA13

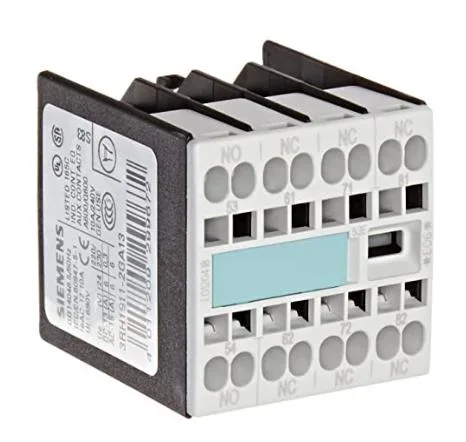

Auxiliary switch block, 53 E 1 NO + 3 NC EN 50011 Spring-type terminal for contactor relays, 4-pole!!! Phased-out product!!! Successor is SIRIUS 3RH2 Preferred successor type is >>3RH2911-2GA13<<
$57.85Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 4.7 A |
| Rated value @ 110 V | 3 A |
| Rated value @ 220 V | 1.2 A |
| Parameter | Value |
|---|---|
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Parameter | Value |
|---|---|
| Width | 36.5 mm |
| Height | 37.5 mm |
| Depth | 46 mm |
MPN
3RH1911-2GA13
