Siemens 3RH2122-2AB00 — Contactors

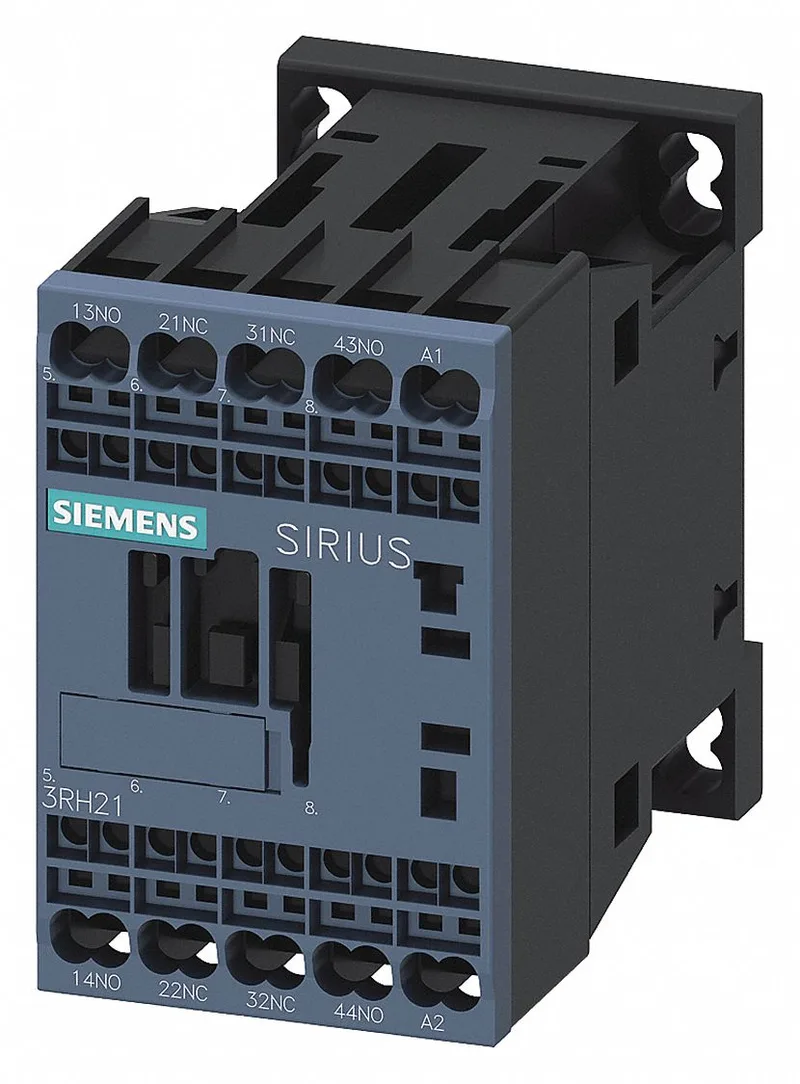

Siemens 3RH2122-2AB00 SIRIUS Auxiliary Contactor, S00, 2 NO,

MPN3RH2122-2AB00
Active

Siemens SIRIUS auxiliary contactor, size S00, 3RH2122-2AB00, 2 instantaneous NO contacts, 10 A rated at 24 V and 230 V, 73 mm depth, screw and snap-on mounting on 35 mm DIN rail.

$104.31Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RH2122-2AB00 — Identification
ParameterValue
Contactor frame sizeS00
3RH2122-2AB00 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V10 A
Rated value @ 24 V10 A
Rated value @ 60 V4.7 A
Rated value @ 110 V3 A
Rated value @ 220 V1.2 A
3RH2122-2AB00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.8 ... 1.1
Rated value @ 50 Hz24 V
3RH2122-2AB00 — Contacts & Poles
ParameterValue
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RH2122-2AB00 — Connection & Mounting
ParameterValue
Conductor cross-section, solid or stranded2x (0,5 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail
3RH2122-2AB00 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RH2122-2AB00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RH2122-2AB00 — Mechanical
ParameterValue
Width45 mm
Height70 mm
Depth73 mm
3RH2122-2AB00 — Specifications
ParameterValue
At AC4 ... 15 ms

Product details

The Siemens 3RH2122-2AB00 is a SIRIUS auxiliary contactor in size S00, carrying 2 instantaneous normally-open contacts.

The 2 NO contacts are rated 10 A at 24 V and 230 V, with derating at higher voltages: 4.7 A at 60 V, 3 A at 110 V, 1.2 A at 220 V, 3 A at 400 V, 0.5 A at 440 V, 2 A at 500 V, 0.26 A at 600 V, and 1 A at 690 V. That covers most control-voltage ranges in industrial panels without needing a separate interposing relay. Operating temperature span is -25 to +60 °C, storage from -55 to +80 °C, with pollution degree 3 for harsh environments. The mechanical life is typical 30 million operations.

Frequently asked questions

What are the key dimensions for panel layout?

Width is 45 mm, depth 73 mm, height 70 mm. It mounts on 35 mm DIN rail with screw or snap-on fastening.

What compliance documentation is available?

The part carries a RoHS substance prohibition date of 10/01/2009, indicating compliance with the RoHS directive.
