Siemens 3RH2131-1AF00 — Contactors

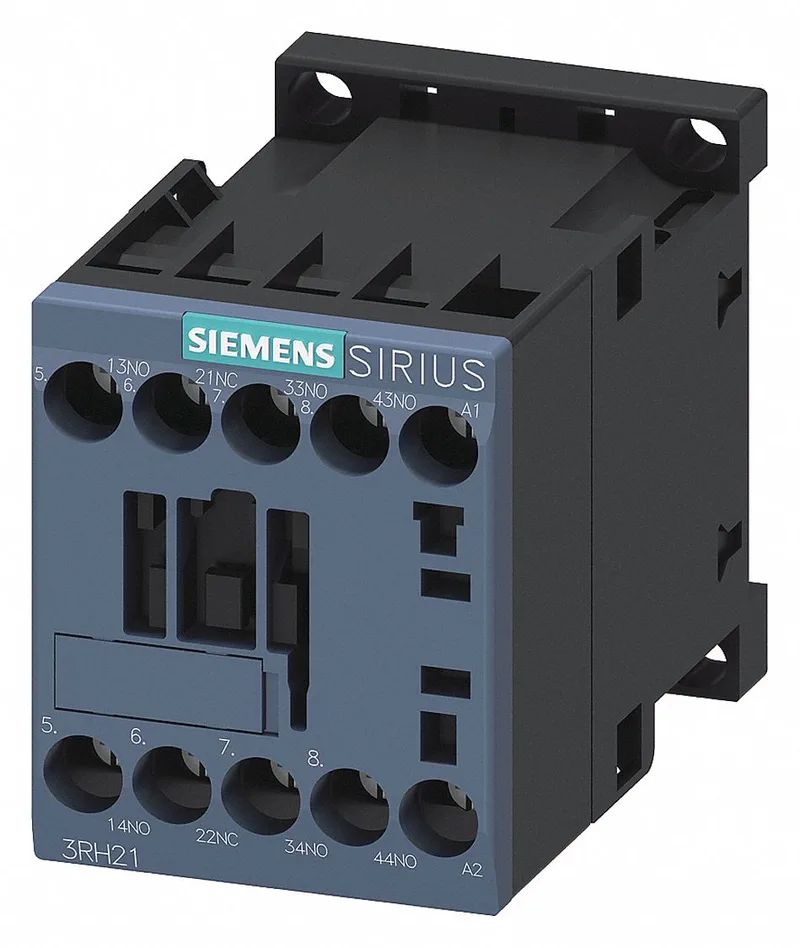

Siemens 3RH2131-1AF00 SIRIUS Auxiliary Contactor, S00, 45 mm

MPN3RH2131-1AF00
Active

Siemens SIRIUS auxiliary contactor, size S00, 45 mm width, 73 mm depth, screw and snap-on DIN rail mount.

$100.22Ref. price · indicative, final on quote
Siemens 3RH2131-1AF00 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RH2131-1AF00 — Identification
ParameterValue
Contactor frame sizeS00
3RH2131-1AF00 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V10 A
Rated value @ 24 V10 A
Rated value @ 60 V4.7 A
Rated value @ 110 V3 A
Rated value @ 220 V1.2 A
3RH2131-1AF00 — Control & Coil
ParameterValue
Control supply voltage typeAC
Rated value @ 50 Hz0.8 ... 1.1
Rated value @ 50 Hz110 V
3RH2131-1AF00 — Contacts & Poles
ParameterValue
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RH2131-1AF00 — Connection & Mounting
ParameterValue
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail
3RH2131-1AF00 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RH2131-1AF00 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RH2131-1AF00 — Mechanical
ParameterValue
Width45 mm
Height57.5 mm
Depth73 mm
3RH2131-1AF00 — Specifications
ParameterValue
At AC4 ... 15 ms

Product details

It measures 45 mm wide by 73 mm deep, fitting standard panel layouts without special adapter plates. Rated for 10 A at both 24 V and 230 V, it handles typical control-circuit loads — pilot lights, relays, PLC inputs — across common voltage levels. The contact block carries 3 instantaneous contacts (NO/NC configuration not specified in this data).

Terminals accept solid or stranded wire: 2x (0.5 to 1.5 mm²), 2x (0.75 to 2.5 mm²), or 2x 4 mm². Strip length and ferrule sizing follow standard Siemens practice for the S00 frame.

Frequently asked questions

What is the depth and width of this contactor?

Depth is 73 mm, width is 45 mm. Height is 57.5 mm.

What compliance documentation is available?

The evidence includes a substance prohibitance date of 10/01/2009, aligning with RoHS and REACH requirements. No specific UL or IEC certification numbers are in this data set.
