Siemens 3RH2131-2VB40 — Contactors

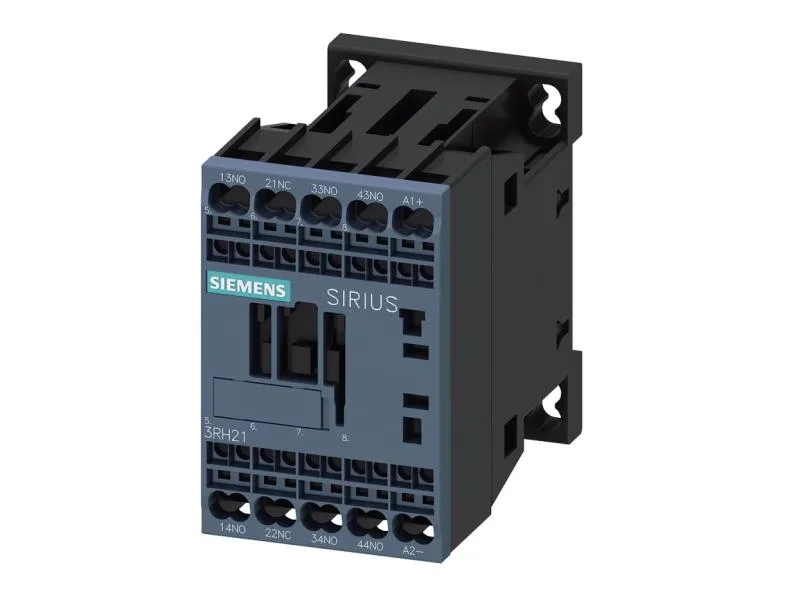

Siemens 3RH2131-2VB40 SIRIUS Coupling Relay, 24 VDC, 10 A

MPN3RH2131-2VB40
Active

Siemens SIRIUS 3RH2131-2VB40 coupling relay, size S00, 24 VDC coil with integrated diode suppression, 3 NO + 1 NC contacts, 10 A rated at 230 V, screw and snap-on 35 mm DIN rail mounting.

$25.40Ref. price · indicative, final on quote
Siemens 3RH2131-2VB40 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RH2131-2VB40 — Identification
ParameterValue
Contactor frame sizeS00
3RH2131-2VB40 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V10 A
Rated value @ 24 V10 A
Rated value @ 60 V4.7 A
Rated value @ 110 V3 A
Rated value @ 220 V1.2 A
3RH2131-2VB40 — Control & Coil
ParameterValue
Control supply voltage typeDC
3RH2131-2VB40 — Contacts & Poles
ParameterValue
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RH2131-2VB40 — Connection & Mounting
ParameterValue
Conductor cross-section, solid or stranded2x (0,5 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail
3RH2131-2VB40 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
3RH2131-2VB40 — Environmental
ParameterValue
Operating temperature range-25 ... +50 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m
3RH2131-2VB40 — Mechanical
ParameterValue
Width45 mm
Height70 mm
Depth73 mm
3RH2131-2VB40 — Specifications
ParameterValue
At AC10 000 1/h

Product details

Panel fit and mounting constraints

The 3RH2131-2VB40 measures 45 mm wide by 70 mm tall by 73 mm deep — a size S00 footprint that fits standard 35 mm DIN rail enclosures without crowding adjacent devices. Snap-on mounting to the DIN rail is the primary method, with screw fixing also supported.

Coil drive and contact ratings

The 24 VDC coil draws 1.6 W closing power and includes an integrated diode surge suppressor — no external flyback diode needed when the PLC output drives it.

Lifecycle and compliance status

RoHS compliance date is 10/01/2009.

Frequently asked questions

What compliance documentation does Siemens provide for 3RH2131-2VB40?

RoHS compliance is confirmed with a substance prohibition date of 10/01/2009.

What are the clearance distances needed around this relay?

The side clearance is driven by the 10–15 ms DC arcing time.
