Siemens 3RH2353-1DF40-0KA0 — Contactors

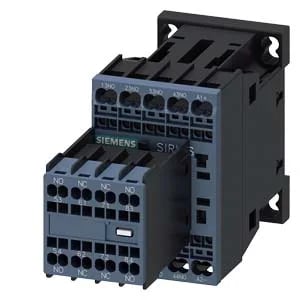

Siemens 3RH2353-1DF40-0KA0 SIRIUS Auxiliary Contactor

MPN3RH2353-1DF40-0KA0
Active

Siemens SIRIUS 3RH2353-1DF40-0KA0 auxiliary contactor, size S00, 4 NO + 1 NC contacts, 110 VDC coil with varistor, screw and snap-on mounting on 35 mm DIN rail.

Siemens 3RH2353-1DF40-0KA0 datasheet (PDF)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

3RH2353-1DF40-0KA0 — Identification
ParameterValue
Contactor frame sizeS00

Ratings & Performance

3RH2353-1DF40-0KA0 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated value @ 400 V3 A
Rated value @ 500 V2 A
Rated value @ 690 V1 A
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V4.7 A
Rated value @ 110 V3 A
Rated value @ 220 V1.2 A

Control & Coil

3RH2353-1DF40-0KA0 — Control & Coil
ParameterValue
Control supply voltage typeDC

Contacts & Poles

3RH2353-1DF40-0KA0 — Contacts & Poles
ParameterValue
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)

Connection & Mounting

3RH2353-1DF40-0KA0 — Connection & Mounting
ParameterValue
Conductor cross-section, solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm standard mounting rail

Durability

3RH2353-1DF40-0KA0 — Durability
ParameterValue
Durability (operating cycles, typ.)10 000 000

Environmental

3RH2353-1DF40-0KA0 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-55 ... +80 °C
Installation altitude, max.2 000 m

Mechanical

3RH2353-1DF40-0KA0 — Mechanical
ParameterValue
Width45 mm
Height57.5 mm
Depth121 mm

Specifications

3RH2353-1DF40-0KA0 — Specifications
ParameterValue
At AC10 000 1/h

Product details

Panel fit and mounting constraints

The 3RH2353-1DF40-0KA0: Its dimensions are 57.5 mm height, 45 mm width, and 121 mm depth — the depth figure is the critical dimension for gland-plate clearance in shallow enclosures.

Contact ratings and switching duty

This auxiliary contactor carries 4 normally open (NO) and 1 normally closed (NC) instantaneous contacts. The coil is rated 110 VDC with a closing power of 4 W and includes a built-in varistor for surge suppression — this eliminates the need for an external snubber on the coil circuit.

Environmental and compliance documentation

The substance prohibition date per RoHS is 07/01/2006, confirming RoHS compliance for the European market.

Frequently asked questions

What is the depth and width of 3RH2353-1DF40-0KA0?

The depth is 121 mm and the width is 45 mm, with a height of 57.5 mm. These dimensions are for the size S00 housing and are critical for panel layout and gland-plate clearance.

What compliance documentation does Siemens provide for 3RH2353-1DF40-0KA0?

The part carries a RoHS substance prohibition date of 07/01/2006, confirming RoHS compliance. Full compliance documentation including UL, CSA, and CE declarations is available from Siemens upon request.
