Mounting and Wiring Notes
The 3RH2422-1AK60: Mounts on 35 mm DIN rail (screw and snap-on); clearances 10 mm upward/downward/forward, 6 mm sideways. Arcing time 10... 15 ms at AC; switching frequency up to 10 000 1/h at DC.

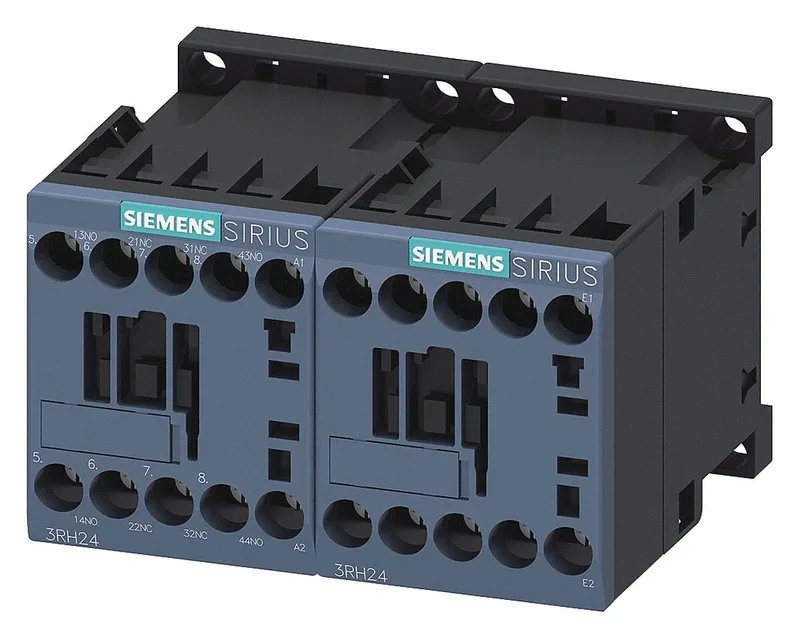

Siemens SIRIUS 3RH2422-1AK60 Auxiliary Contactor S00
MPN3RH2422-1AK60
Active
Siemens SIRIUS auxiliary contactor, 3RH2422-1AK60, size S00, 2 instantaneous contacts, rated 10 A at 24 V and 230 V AC.
$296.27Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Contactor frame size | S00 |
| Parameter | Value |
|---|---|
| Rated operational current, AC-12, max. | 10 A |
| Rated value @ 400 V | 3 A |
| Rated value @ 500 V | 2 A |
| Rated value @ 690 V | 1 A |
| Rated value @ 230 V | 10 A |
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 4.7 A |
| Rated value @ 110 V | 3 A |
| Rated value @ 220 V | 1.2 A |
| Parameter | Value |
|---|---|
| Control supply voltage type | AC |
| Rated value @ 50 Hz | 0.8 ... 1.1 |
| Rated value @ 50 Hz | 110 V |
| Parameter | Value |
|---|---|
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
| Parameter | Value |
|---|---|
| Conductor cross-section, solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm² |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail |
| Parameter | Value |
|---|---|
| Durability (operating cycles, typ.) | 5 000 000 |
| Durability with aux. switch block (cycles, typ.) | 5 000 000 |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
| Installation altitude, max. | 2 000 m |
| Parameter | Value |
|---|---|
| Width | 90 mm |
| Height | 57.5 mm |
| Depth | 73 mm |
| Parameter | Value |
|---|---|
| At AC | 4 ... 15 ms |
Product details
Frequently asked questions
What are the depth and width of 3RH2422-1AK60?
Depth is 73 mm, width is 90 mm.
What compliance documentation does this part carry?
RoHS compliance per substance prohibitance date 10/01/2009.
