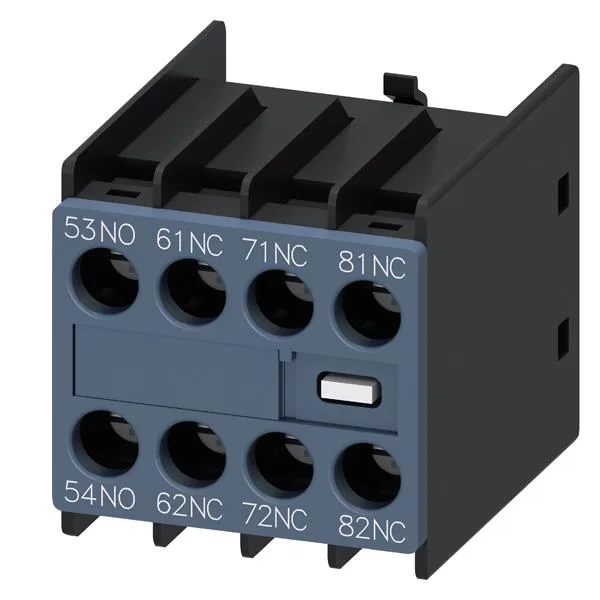

Siemens 3RH2911-1GA13
MPN3RH2911-1GA13
Active
auxiliary switch, on the front, 1 NO + 3 NC, 53/54, 61/62, 71/72, 81/82, current path: 1 NO, 1 NC, 1 NC, 1 NC, screw terminal, physically coded, only with contactor relays 3RH2140 and 3RH2440 combinable (according to EN 50011)
$7.39Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Contactor frame size | S00 |
Ratings & Performance
| Parameter | Value |
|---|---|
| Rated value @ 24 V | 10 A |
| Rated value @ 60 V | 4.7 A |
| Rated value @ 110 V | 3 A |
| Rated value @ 220 V | 1.2 A |
Contacts & Poles
| Parameter | Value |
|---|---|
| Auxiliary contact reliability | 1 faulty switching per 100 million (17 V, 1 mA) |
Connection & Mounting
| Parameter | Value |
|---|---|
| Conductor cross-section, solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Conductor cross-section, finely stranded w/ ferrule | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| Mounting method | snap-on mounting |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -55 ... +80 °C |
Mechanical
| Parameter | Value |
|---|---|
| Width | 36 mm |
| Height | 37.5 mm |
| Depth | 43.7 mm |
MPN
3RH2911-1GA13
