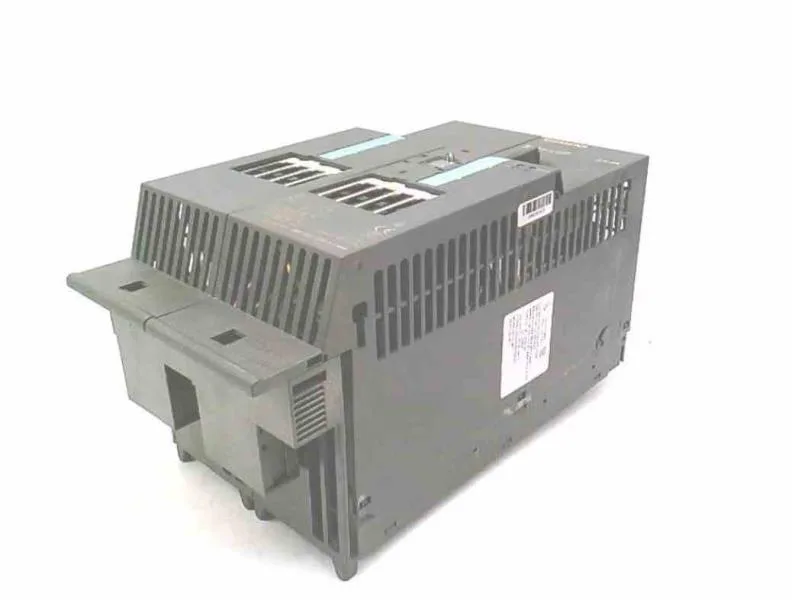

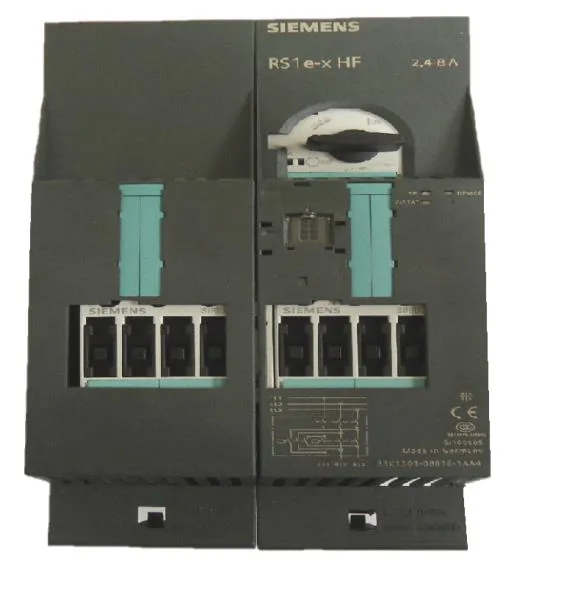

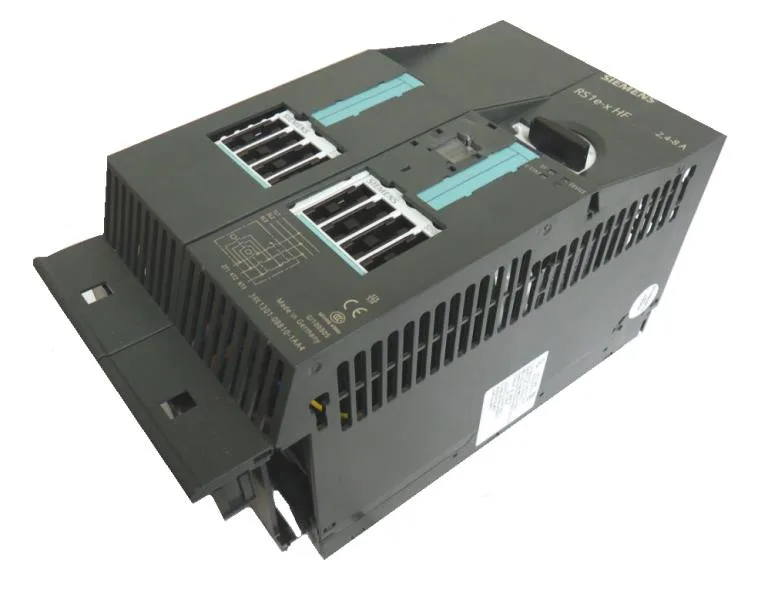

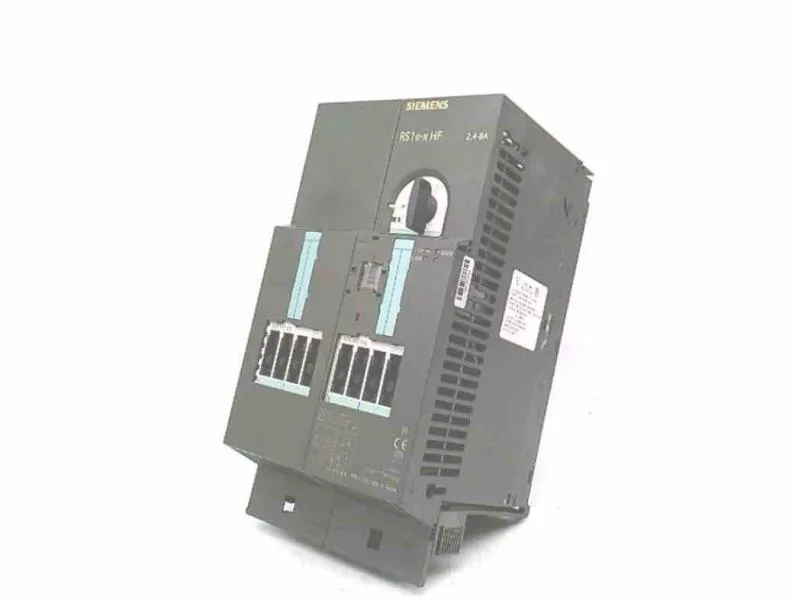

3RK1301-0BB10-1AA4 - Siemens
MPN3RK1301-0BB10-1AA4
RS1E-X for ET200S High Feature reversing starter Setting range 2.4...8 A Mechanical switching Electronic protection AC-3 up to 3 kW / 400 V expandable for Brake control module 2DI module 2DI module Motor starter ES Circuit breaker signaling parameterizable
$381.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product designation | Motor starters |
| Product design | reversing starter |
| Parameter | Value |
|---|---|
| PROFIBUS DP support | Yes |
| PROFINET support | Yes |
| AS-Interface support | No |
| Bus communication | Yes |
| Parameter | Value |
|---|---|
| Digital inputs | 2 |
| Digital input signals | 0 |
| Digital output signals | 0 |
| Digital inputs parameterizable | Yes |
| Digital outputs parameterizable | No |
| Parameter | Value |
|---|---|
| Rated value (DC) | 20.4 ... 28.8 V |
| Control supply voltage type | DC |
| Rated surge voltage | 6 kV |
| Adjustable Current Response Value Current Of The Current-Dependent Overload Release | 2.4 ... 8 A |
| Operating Voltage Rated Value | 200 ... 400 V |
| Number Of Poles For Main Current Circuit | 3 |
| Parameter | Value |
|---|---|
| Operating temperature range | 0 ... 60 °C |
| Storage temperature range | -40 ... +70 °C |
| Shock resistance | 5g / 11 ms |
| Pollution degree | 3 at 400 V, 2 at 500 V according to IEC60664 (IEC61131) |
| Parameter | Value |
|---|---|
| Width | 130 mm |
| Depth | 150 mm |
| Height | 290 mm |
| Mounting method | pluggable on terminal module |
| Parameter | Value |
|---|---|
| At 400 V rated value | 50 kA |
| Reverse Starting | Yes |
| Type Of The Motor Protection | solid-state |
| Trip Class | CLASS 10 |
MPN
3RK1301-0BB10-1AA4
