Siemens 3RK1304-5LS40-3AA0 — Remote I/O & Fieldbus Modules

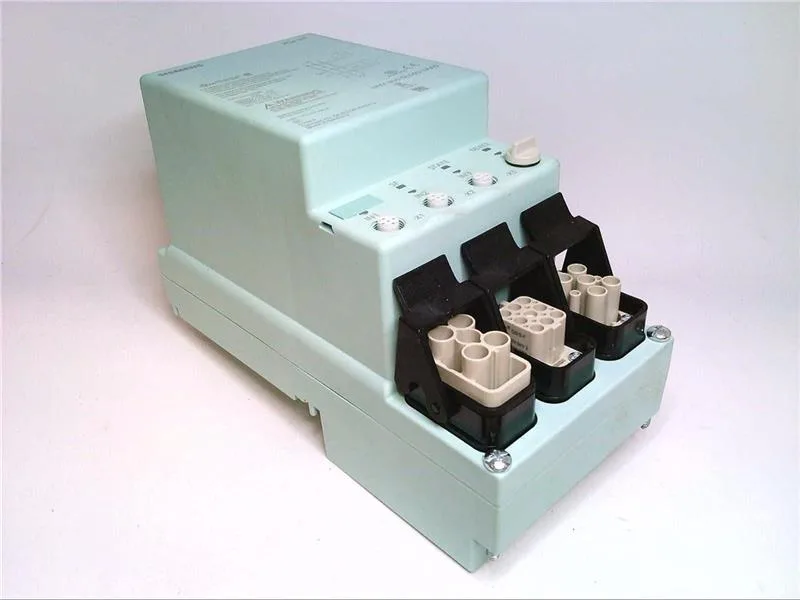

Siemens 3RK1304-5LS40-3AA0 SIMATIC Motor Starter, Reversing,

MPN3RK1304-5LS40-3AA0
Active

Siemens SIMATIC motor starter, reversing design, 3RK1304-5LS40-3AA0, IP65, 12 A at 400 V AC, Trip Class 10, 100 kA SCCR, PROFINET and PROFIBUS DP.

$419.10Ref. price · indicative, final on quote
Siemens 3RK1304-5LS40-3AA0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RK1304-5LS40-3AA0 — Identification
ParameterValue
Product designationMotor starters
Product designreversing starter
3RK1304-5LS40-3AA0 — Communication
ParameterValue
PROFIBUS DP supportYes
PROFINET supportYes
AS-Interface supportNo
Bus communicationYes
3RK1304-5LS40-3AA0 — I/O
ParameterValue
Digital inputs4
Digital input signals4
Digital output signals0
Digital inputs parameterizableYes
Digital outputs parameterizableNo
3RK1304-5LS40-3AA0 — Electrical
ParameterValue
Rated value (DC)20.4 ... 28.8 V
Control supply voltage typeDC
Rated surge voltage6 kV
Voltage typeAC
Adjustable Current Response Value Current Of The Current-Dependent Overload Release1.5 ... 12 A
Operating Voltage Rated Value200 ... 400 V
Number Of Poles For Main Current Circuit3
3RK1304-5LS40-3AA0 — Environmental
ParameterValue
Ingress protection (IP)IP65
Operating temperature range-25 ... +55 °C
Storage temperature range-40 ... +70 °C
Shock resistance15g / 11 ms
Pollution degree3
3RK1304-5LS40-3AA0 — Mechanical
ParameterValue
Width110 mm
Depth150 mm
Height230 mm
Mounting methodscrew fixing
3RK1304-5LS40-3AA0 — Specifications
ParameterValue
At 400 V rated value100 000 A
At AC-3 at 400 V rated value5 500 W
Reverse StartingYes
Type Of The Motor Protectionsolid-state
Trip ClassCLASS 10

Product details

Mounting and environmental fit

Dimensions are 150 mm deep × 110 mm wide × 230 mm high. Screw fixing (not DIN-rail snap-on) means it mounts directly to a backplate or machine frame — plan for four drilled holes and M5 hardware. Shock resistance of 15 g / 11 ms and vibration resistance of 2 g mean it survives the mechanical stress of a conveyor line, a press, or a packaging machine without loosening internal connections. Mounting position can be vertical or horizontal, giving flexibility in tight cabinets.

No second-source cross-reference exists within the SIMATIC family that matches the reversing, IP65, PROFINET feature set identically.

Frequently asked questions

What is the SCCR of 3RK1304-5LS40-3AA0?

The short-circuit current rating is 100 000 A at 400 V AC, which allows placement on high-fault bus systems without additional current-limiting protection.

How do I get current pricing and availability for 3RK1304-5LS40-3AA0?

This part is sourced through independent distribution. Submit an RFQ for current pricing and availability — both are confirmed at quote time.

What is the depth of 3RK1304-5LS40-3AA0?

The depth is 150 mm. Overall dimensions are 150 mm deep × 110 mm wide × 230 mm high.

What compliance documentation does Siemens provide for this motor starter?

As a current-production SIMATIC component, Siemens provides a Declaration of Conformity covering the applicable EU directives (EMC, Low Voltage, RoHS). The IP65 rating and pollution degree 3 are tested per IEC 60529 and IEC 60664-1 respectively. Specific UL/CSA file numbers are available in the product certificate on the Siemens support portal.
