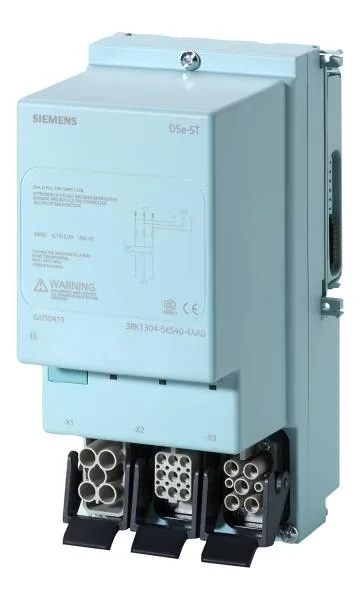

3RK1304-5LS40-5AA0 - Siemens
MPN3RK1304-5LS40-5AA0
Active
ET 200pro RSE ST Reversing starter standard Mechanical switching Electronic overload protection AC-3, 5.5 kW / 400 V 1.50 A...12.00 A without brake contact Han Q4/2 - Han Q8/0
$330.20Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product designation | Motor starters |
| Product design | reversing starter |
| Parameter | Value |
|---|---|
| PROFIBUS DP support | Yes |
| PROFINET support | Yes |
| AS-Interface support | No |
| Bus communication | Yes |
| Parameter | Value |
|---|---|
| Digital inputs | 0 |
| Digital input signals | 0 |
| Digital output signals | 0 |
| Digital inputs parameterizable | No |
| Digital outputs parameterizable | No |
| Parameter | Value |
|---|---|
| Rated value (DC) | 20.4 ... 28.8 V |
| Control supply voltage type | DC |
| Rated surge voltage | 6 kV |
| Voltage type | AC |
| Adjustable Current Response Value Current Of The Current-Dependent Overload Release | 1.5 ... 12 A |
| Operating Voltage Rated Value | 200 ... 400 V |
| Number Of Poles For Main Current Circuit | 3 |
| Parameter | Value |
|---|---|
| Ingress protection (IP) | IP65 |
| Operating temperature range | -25 ... +55 °C |
| Storage temperature range | -40 ... +70 °C |
| Shock resistance | 15g / 11 ms |
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| Width | 110 mm |
| Depth | 150 mm |
| Height | 230 mm |
| Mounting method | screw fixing |
| Parameter | Value |
|---|---|
| At 400 V rated value | 100 000 A |
| At AC-3 at 400 V rated value | 12 A |
| Reverse Starting | Yes |
| Type Of The Motor Protection | solid-state |
| Trip Class | CLASS 10 |
MPN
3RK1304-5LS40-5AA0
