What it is and where it fits

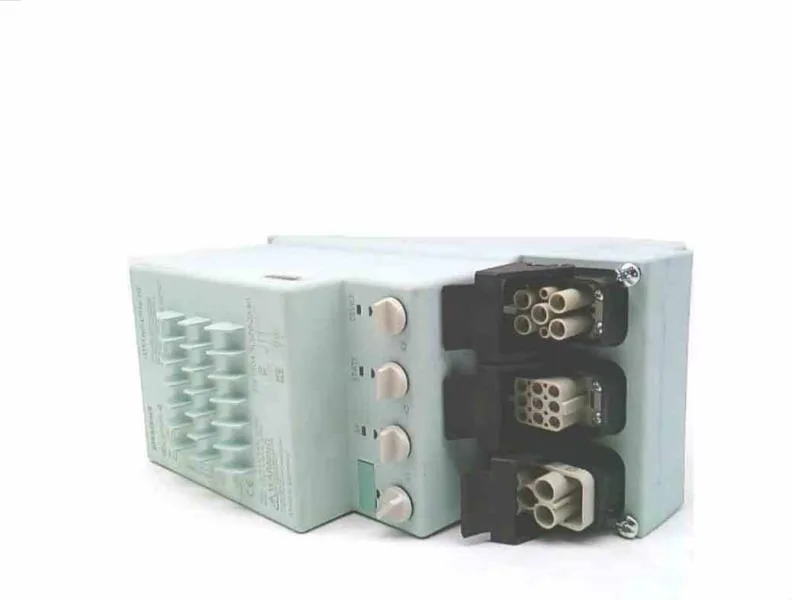

The Siemens 3RK1304-5LS70-2AA0 is a SIMATIC-branded motor starter — a direct starter in an IP65 enclosure, meaning it's a self-contained motor-protection and switching unit that lives out on the machine frame, not inside a central panel. It's rated for 12 A at 400 V AC, which covers a typical 5.5 kW to 7.5 kW induction motor depending on duty cycle. The IP65 rating means the housing and connections tolerate washdown environments, so it's a natural fit for conveyor zones in food, beverage, or packaging lines where you'd rather not run motor cables back to a cabinet.
Key ratings and what they mean for your line
The trip class is adjustable among CLASS 5, 10, 20, and 30. That lets you match the thermal overload curve to the start-up profile of the load — a conveyor with a long, heavy belt might need CLASS 20 to avoid nuisance tripping during acceleration, while a pump with a quick start can run on CLASS 10. The short-circuit breaking capacity at 400 V is 100,000 A, which means this starter can safely interrupt a fault up to that level without upstream fuses needing to clear first — important for SCCR coordination in a distribution panel feeding multiple starters. It communicates over both PROFINET and PROFIBUS DP, so it drops into either a newer IO-controller architecture or a legacy DP network. The 4 digital inputs (via M12 sockets) are available for local sensors — think photoeyes for zone occupancy or jam detection on a conveyor — and the 2-byte input/output process image gives you enough data for start/stop, fault feedback, and a few status bits per starter.
Mounting and integration
Mounting is by screw fixing, and the starter can be installed vertically or horizontally. At 230 mm high, 110 mm wide, and 160 mm deep, it's compact enough to mount directly on a machine frame or a sub-panel. The main energy infeed uses a socket per ISO 23570, so cabling is a standardized plug-in rather than hardwiring each starter individually — speeds up commissioning and replacement.
