Siemens 3RK1315-6KS71-3AA0 — Remote I/O & Fieldbus Modules

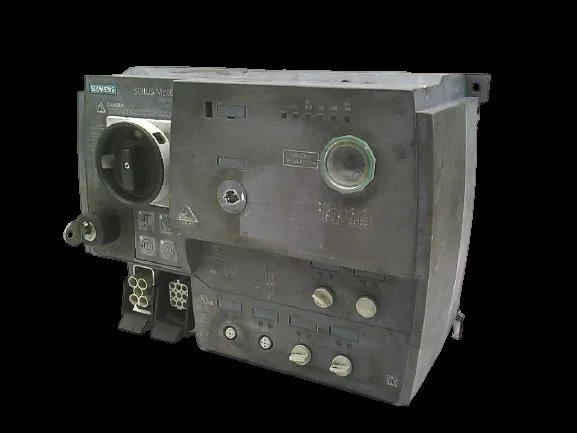

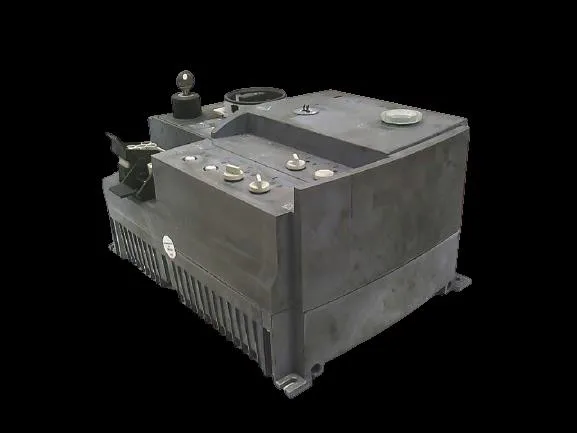

Siemens 3RK1315-6KS71-3AA0 M200D reversing starter, 0.75 kW, IP65

MPN3RK1315-6KS71-3AA0
NRND

Siemens 3RK1315-6KS71-3AA0 — now in phase-out and being discontinued, supplied from remaining surplus and broker stock.

$501.65Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3RK1315-6KS71-3AA0 — Identification
ParameterValue
Product designationMotor starters
Product designreversing starter
3RK1315-6KS71-3AA0 — Communication
ParameterValue
PROFIBUS DP supportNo
PROFINET supportNo
AS-Interface supportYes
AS-Interface supportYes
Bus communicationYes
3RK1315-6KS71-3AA0 — I/O
ParameterValue
Digital inputs4
Digital input signals4
Digital output signals1
Digital inputs parameterizableNo
Digital outputs parameterizableNo
3RK1315-6KS71-3AA0 — Electrical
ParameterValue
Rated value (DC)20.4 ... 28.8 V
Control supply voltage typeDC
Rated surge voltage6 000 V
Adjustable Current Response Value Current Of The Current-Dependent Overload Release0.15 ... 2 A
Operating Voltage Rated Value200 ... 440 V
Number Of Poles For Main Current Circuit3
3RK1315-6KS71-3AA0 — Environmental
ParameterValue
Ingress protection (IP)IP65
Operating temperature range-25 ... +55 °C
Storage temperature range-40 ... +70 °C
Shock resistance12g / 11 ms
Pollution degree3
3RK1315-6KS71-3AA0 — Mechanical
ParameterValue
Width294 mm
Depth159 mm
Height215 mm
Mounting methodscrew fixing
3RK1315-6KS71-3AA0 — Specifications
ParameterValue
At 400 V rated value0.75 kW
At AC-3 at 400 V rated value2 A
Reverse StartingYes
Type Of The Motor Protectionfull motor protection
Trip ClassCLASS 10

Product details

Overview

The 3RK1315-6KS71-3AA0 is a Siemens M200D Basic reversing motor starter rated 0.75 kW at 400 V with 3 poles, CLASS 10 trip, and a 24 V DC supply. It is housed in an IP65 enclosure with finger-safe touch protection and screw fixing.
