Overview
The 3RK1315-6NS71-2AA3 is a Siemens M200D Basic motor starter in direct-starter form, rated 4 kW at 400 V with a CLASS 10 trip class and 3 poles. It operates on a 24 V DC supply and is housed in an IP65 enclosure with screw fixing.

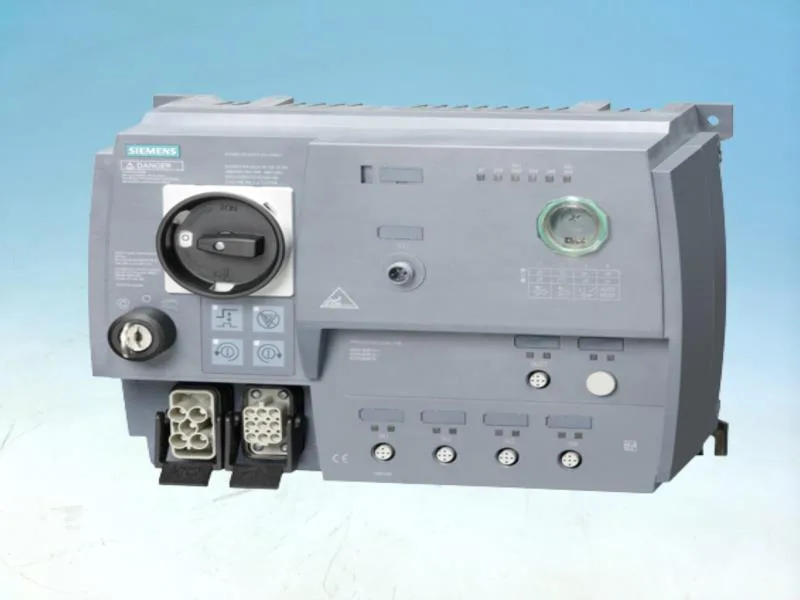

Siemens 3RK1315-6NS71-2AA3 M200D Basic motor starter, 4 kW, CLASS 10
MPN3RK1315-6NS71-2AA3
NRND
Siemens 3RK1315-6NS71-2AA3 — now in phase-out and being discontinued, supplied from remaining surplus and broker stock.
$528.32Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product designation | Motor starters |
| Product design | direct starter |
Communication
| Parameter | Value |
|---|---|
| PROFIBUS DP support | No |
| PROFINET support | No |
| AS-Interface support | Yes |
| AS-Interface support | Yes |
| Bus communication | Yes |
I/O
| Parameter | Value |
|---|---|
| Digital inputs | 4 |
| Digital input signals | 4 |
| Digital output signals | 1 |
| Digital inputs parameterizable | No |
| Digital outputs parameterizable | No |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 20.4 ... 28.8 V |
| Control supply voltage type | DC |
| Rated surge voltage | 6 000 V |
| Adjustable Current Response Value Current Of The Current-Dependent Overload Release | 1.5 ... 9 A |
| Operating Voltage Rated Value | 200 ... 440 V |
| Number Of Poles For Main Current Circuit | 3 |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection (IP) | IP65 |
| Operating temperature range | -25 ... +55 °C |
| Storage temperature range | -40 ... +70 °C |
| Shock resistance | 12g / 11 ms |
| Pollution degree | 3 |
Mechanical
| Parameter | Value |
|---|---|
| Width | 294 mm |
| Depth | 159 mm |
| Height | 215 mm |
| Mounting method | screw fixing |
Specifications
| Parameter | Value |
|---|---|
| At 400 V rated value | 4 kW |
| At AC-3 at 400 V rated value | 9 A |
| Reverse Starting | No |
| Type Of The Motor Protection | full motor protection |
| Trip Class | CLASS 10 |
Product details
MPN
3RK1315-6NS71-2AA3
