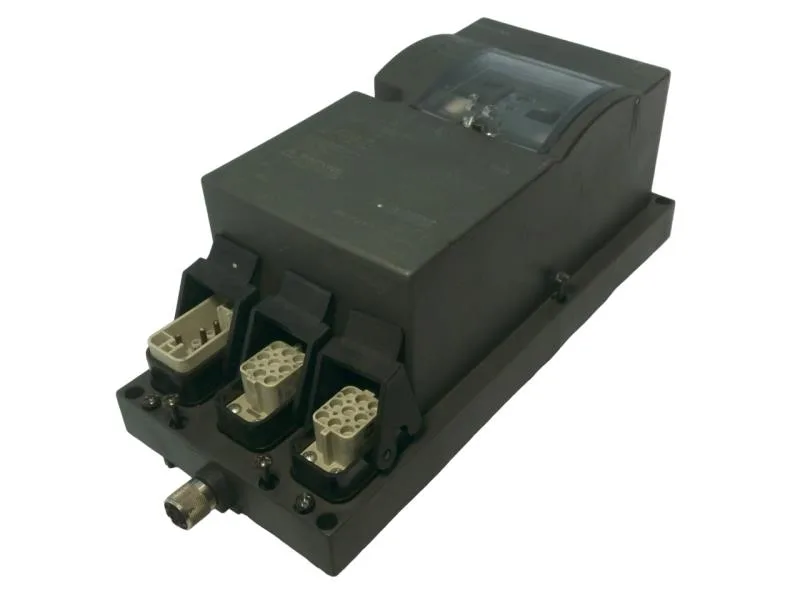

3RK1322-1HS02-0AA0 - Siemens
MPN3RK1322-1HS02-0AA0
AS-i compact starter IP65 Electromechanical DOL starter Setting range 5.5...8 A AC-3, 3 kW / 400 V without brake contact with 9-pole motor outgoing feeder and 9-pole power connection with 2 integrated inputs
$609.60Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product design | direct starter |
| Parameter | Value |
|---|---|
| PROFIBUS DP support | No |
| PROFINET support | No |
| AS-Interface support | Yes |
| Parameter | Value |
|---|---|
| Digital inputs | 2 |
| Digital input signals | 1 |
| Digital output signals | 0 |
| Digital inputs parameterizable | No |
| Digital outputs parameterizable | No |
| Parameter | Value |
|---|---|
| Rated value (DC) | 20.4 ... 28.8 V |
| Control supply voltage type | DC |
| Voltage type | DC |
| Operating Voltage Rated Value | 400 ... 500 V |
| Number Of Poles For Main Current Circuit | 3 |
| Parameter | Value |
|---|---|
| Ingress protection (IP) | IP65 |
| Operating temperature range | -25 ... +55 °C |
| Parameter | Value |
|---|---|
| Width | 120 mm |
| Depth | 190 mm |
| Height | 270 mm |
| Parameter | Value |
|---|---|
| At 400 V rated value | 50 000 A |
| At AC-3 at 400 V rated value | 8 A |
| Type Of The Motor Protection | bimetal |
MPN
3RK1322-1HS02-0AA0
