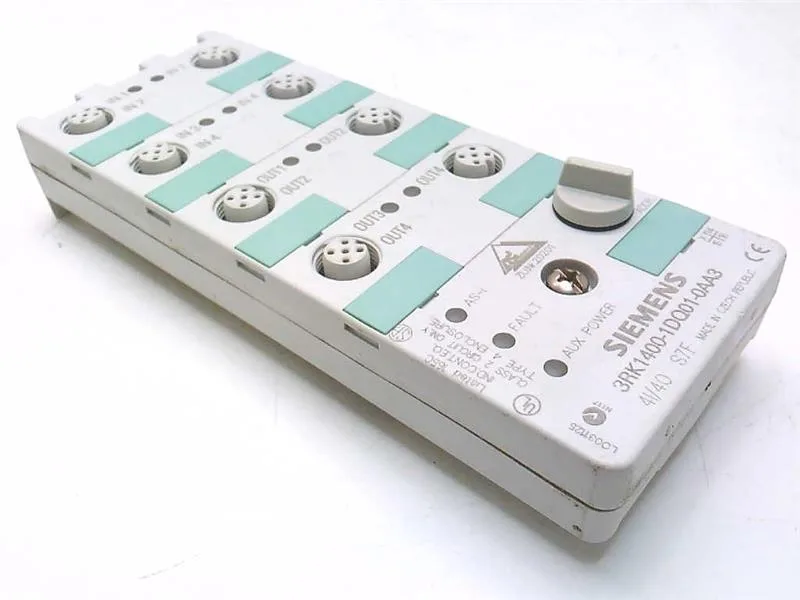

3RK1400-1DQ01-0AA3 - Siemens
MPN3RK1400-1DQ01-0AA3
Active
AS-i compact module K60 digital 4 DI/4 DQ, IP67 4 x input, maximum 200 mA 4 x output, 1 A, 24 V DC 8 x M12 socket Y-II assignment Mounting plate 3RK1901-0CA00 must be ordered separately
$149.86Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product design | digital I/O modules for operation in the field, IP67 - K60 |
| Parameter | Value |
|---|---|
| Digital inputs | 4 |
| Parameter | Value |
|---|---|
| Ingress protection (IP) | IP67 |
| Operating temperature range | -25 ... +85 °C |
| Storage temperature range | -40 ... +85 °C |
| Shock resistance | 15g / 11 ms |
| Parameter | Value |
|---|---|
| Width | 60 mm |
| Depth | 29 mm |
| Height | 152 mm |
| Mounting method | standard rail mounting/wall mounting using mounting plate for K60 compact module |
MPN
3RK1400-1DQ01-0AA3
