3RK1400-2CG00-2AA2 - Siemens
MPN3RK1400-2CG00-2AA2
Active

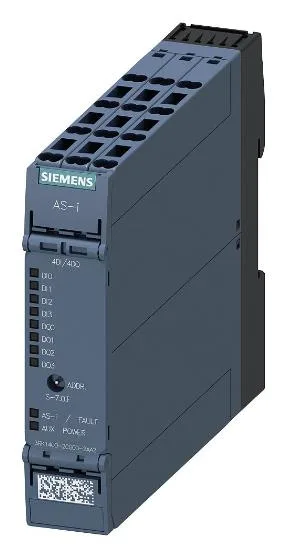

AS-i SlimLine Compact module SC22.5 digital 4 DI/4 DQ, IP20 4 x inputs for 3-wire sensor Sensor supply can be switched over 4 x output, 2 A, 24 V DC maximal 4 A for all outputs spring-type terminals Overall width 22.5 mm
$124.46Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product designation | Slimline Compact I/O module for use in the control cabinet |
| Product design | AS-i SC22.5, 4DI/4DQ, Standard |
| Parameter | Value |
|---|---|
| AS-Interface support | Yes |
| Parameter | Value |
|---|---|
| Digital inputs | 4 |
| Parameter | Value |
|---|---|
| Ingress protection (IP) | IP20 |
| Operating temperature range | -25 ... +70 °C |
| Storage temperature range | -40 ... +85 °C |
| Shock resistance | 15g / 11 ms (modules) or 10g / 11 ms (modules with device connector) |
| Parameter | Value |
|---|---|
| Width | 22.5 mm |
| Depth | 120 mm |
| Height | 100 mm |
| Mounting method | screw and snap-on mounting |
MPN
3RK1400-2CG00-2AA2
