Software for AS-Interface Safety Monitor Commissioning

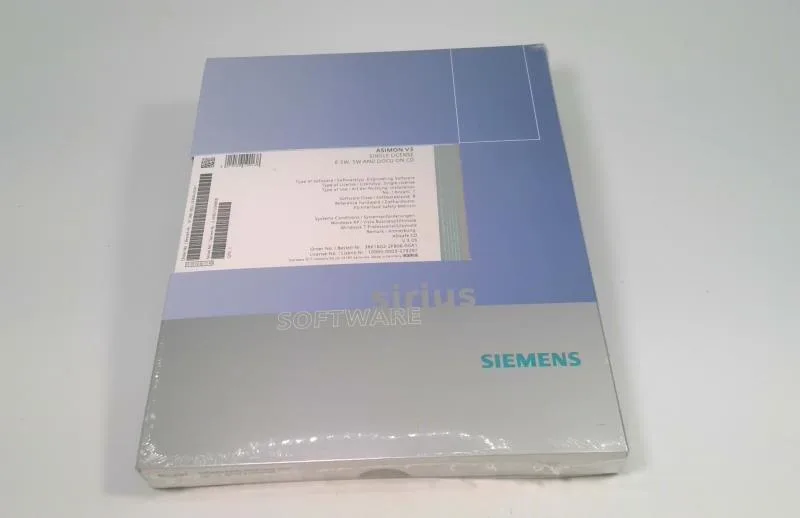

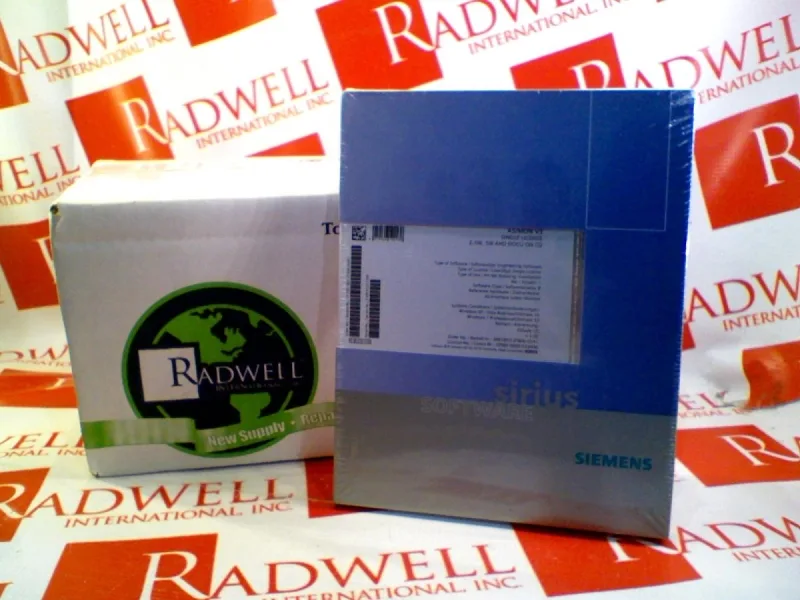

The Siemens 3RK1802-2FB06-0GA1 is the ASIsafe CD (V3) software package for the AS-Interface safety monitor, delivering the ASIMON V3.05 configuration tool on a CD-ROM. This is the parameterization, commissioning, and diagnostic software for the safety monitor — the same tool used to set up safety logic, assign slave addresses, and verify the AS-i safety loop before the line starts. It ships as a single license for one installation, so the project engineer's laptop gets the licensed copy and the panel-side PC runs the viewer if needed.
OS Compatibility and System Requirements
ASIMON V3.05 runs on Windows 11, Windows 10 Professional 64-bit (version 1607), Windows 10 Enterprise 64-bit (version 1709), Windows Server 2012 R2 SP1 StdE 64-bit, Windows Server 2016 Standard 64-bit, and Windows XP, Vista, 7, 8, 8.1 (32/64-bit). Minimum hardware calls for an 800 Hz processor clock, 32 MB RAM, 32 MB free hard disk, and a 256-color graphics card. The software is available in German, English, French, Spanish, Italian, Japanese, and Swedish.
Functional Scope for the Integrator
This is a configuration and diagnostics tool, not a simulation or evaluation platform. The included functions cover commissioning, parameterization, project planning, communication, and diagnostics. It does not include analysis, movement, component library, evaluation, simulation, maintenance, controlled positioning, or data acquisition functions. For the safety monitor integrator, the practical workflow is: project planning to map the AS-i slaves, parameterization to set the safety monitor's logic, commissioning to download and test, then diagnostics for ongoing fault-finding on the line.
