Siemens 3RK1902-1BA00

Siemens 3RK1902-1BA00 M12 PROFIBUS Connector, 5-pole B-coded

MPN 3RK1902-1BA00
Active

Siemens SIRIUS 3RK1902-1BA00 M12 connector, PROFIBUS angled, 5-pole, B-coded, screw terminal, IP67, 4 A, 125 V.

$30.48 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

3RK1902-1BA00 specifications
ParameterValue
Connector typePin
Poles5
IP ratingIP67
Depth20 mm
Width43 mm
Height54 mm

Product details

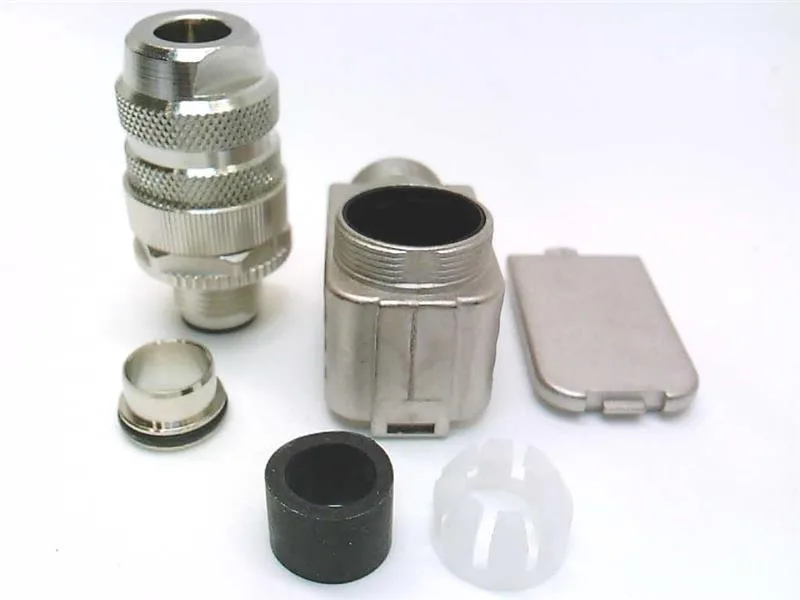

The Siemens 3RK1902-1BA00 is a field-attachable M12 connector for PROFIBUS networks — angled cable outlet, B-coded, 5-pole, with screw terminals. No terminating resistor is integrated, so you add one at the bus end if needed. The IP67 rating means the connector body and the mated interface withstand washdown — suitable for food-and-bev lines, packaging cells, or any zone where hoses are used. The housing is zinc diecast, nickel-plated; the contact is brass with gold plating. Cable entry accepts 6–8 mm diameter cable, secured by a pressure screw and pinch ring.

The M12 x 1 thread with B-coding mates directly to standard PROFIBUS device ports and junction boxes. The angled outlet keeps the cable profile low against the panel or machine frame — useful in tight enclosures or along cable trays where a straight plug would snag. Screw terminals accept flexible conductors up to 0.75 mm². The 100 mating-cycle mechanical life is typical for field-attachable M12s; plan for occasional replacement if the connector is frequently disconnected during line changeovers.

MPN
3RK1902-1BA00
