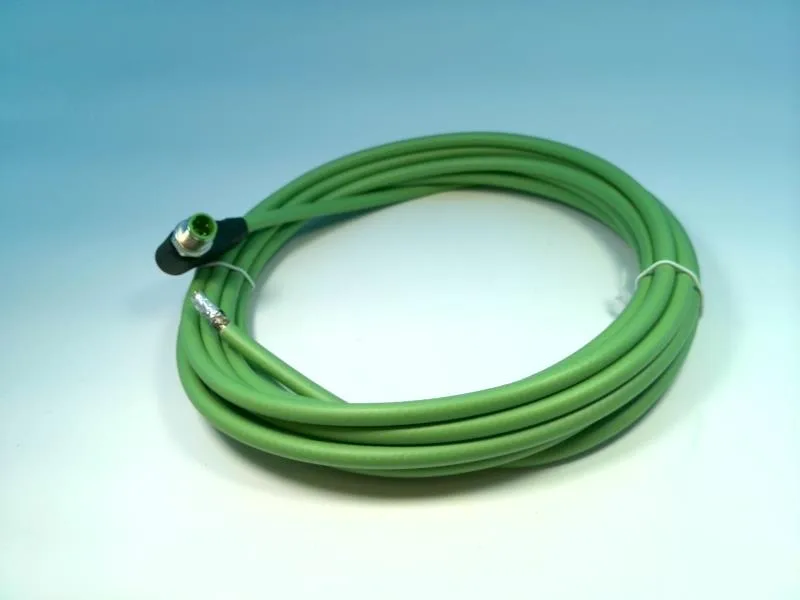

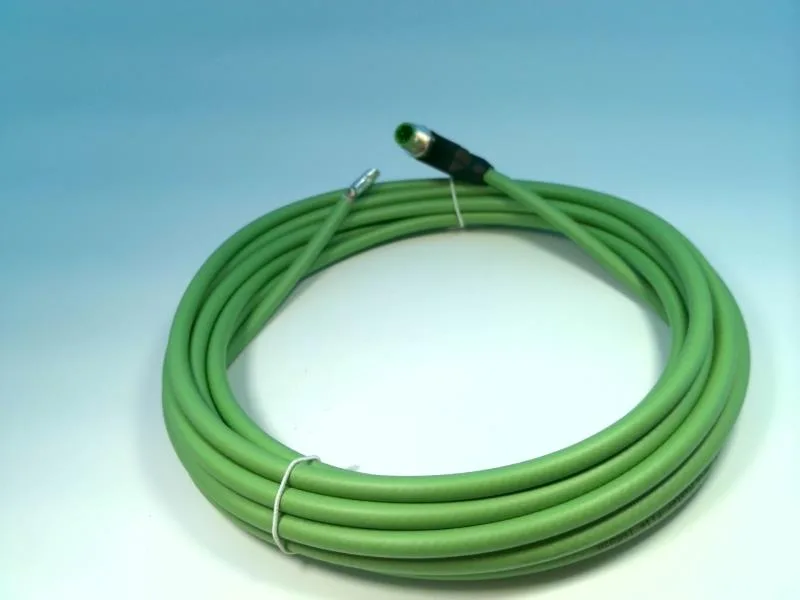

The Siemens 3RK1902-2HB50 is a pre-wired M12 angled plug with a 5 m polyurethane (PUR) cable, designed for fieldbus or sensor/actuator connections in industrial automation panels. It carries 4 A per pin and handles surge voltages up to 1.5 kV, so it can power a small I/O slice or a couple of proximity sensors without a separate junction box. The cable is shielded with tinned copper braid (0.34 mm² conductors, 4 cores), and the jacket is PUR—good for flexing and oil resistance out on the route. It's rated for 2 million bending cycles, so it'll survive a cable track or a moving arm.
Siemens 3RK1902-2HB50 M12 angled connector, 5 m, 4 A, UL/CSA
MPN3RK1902-2HB50
Active
Siemens 3RK1902-2HB50, M12 angled plug with 5 m PUR cable, 4 A per pin, 1.5 kV surge, UL/CSA/IEC.
$35.56Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Rated surge voltage | 1.5kV |
| Parameter | Value |
|---|---|
| Pollution degree | 3 |
Product details
Frequently asked questions
What compliance documentation does this part carry?
It has UL, CSA, and IEC approvals, and is RoHS compliant. No CCC or C-Tick.
What is the ampacity and surge rating?
4 A per pin maximum, with a surge voltage resistance of 1.5 kV.
MPN
3RK1902-2HB50
