Siemens 3RK1902-4GB50-4AA0 — Remote I/O & Fieldbus Modules

Siemens 3RK1902-4GB50-4AA0 M12 angled cable, 5m, 4A, IP67

MPN3RK1902-4GB50-4AA0
Active

Siemens SIRIUS 3RK1902-4GB50-4AA0, M12 angled socket, 4-pole, A-coded, 5 m cable, 4 x 0.34 mm², 4 A, 250 V DC, IP67, PUR sheath, UL/CSA/IEC.

$17.78Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RK1902-4GB50-4AA0 — Electrical
ParameterValue
Rated surge voltage2 500V
3RK1902-4GB50-4AA0 — Environmental
ParameterValue
Ingress protection (IP)IP67
Pollution degree3

Product details

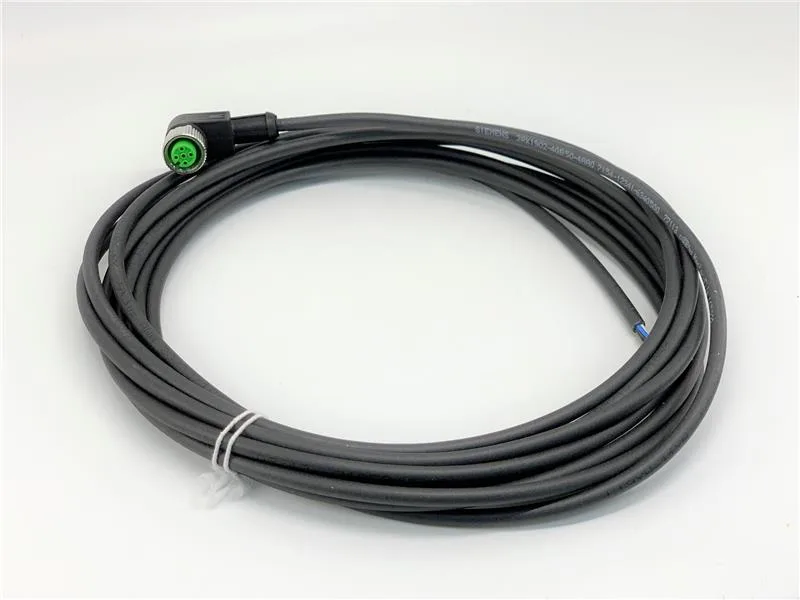

The Siemens 3RK1902-4GB50-4AA0 is a pre-assembled control cable with an M12 angled socket on one end and open leads on the other, 5 m long, 4-pole, A-coded. It's rated for 4 A per pin at up to 250 V DC, with an IP67-rated PUR sheath that handles washdown environments — food-and-bev or outdoor panel drops are the typical deployment. The 4.7 mm cable diameter and 0.34 mm² inner conductors keep it compact for tight gland plates.

IP67 means the connector and cable withstand temporary immersion — it's sealed against dust and water ingress, so it's suited for washdown zones or outdoor cabinets where condensation is a risk. The 4 A per pin ampacity is the maximum continuous current each of the four pins can carry; for sensor or actuator loops drawing under 2 A, that's comfortable headroom. The 250 V DC operating voltage covers most 24 V DC control circuits with plenty of margin. Temperature range from -25°C to 80°C means it survives cold storage areas and hot cabinet interiors near drives or transformers.

Frequently asked questions

What approvals does this cable carry?

It carries UL, CSA, and IEC approvals, covering North American and international installations.

What is the maximum temperature rating?

The maximum operating temperature is 80°C, with a minimum of -25°C.

What is the ampacity per pin?

Each pin is rated for a maximum of 4 A continuous.

MPN
3RK1902-4GB50-4AA0
