Siemens 3RK1903-0AL10 — Remote I/O & Fieldbus Modules

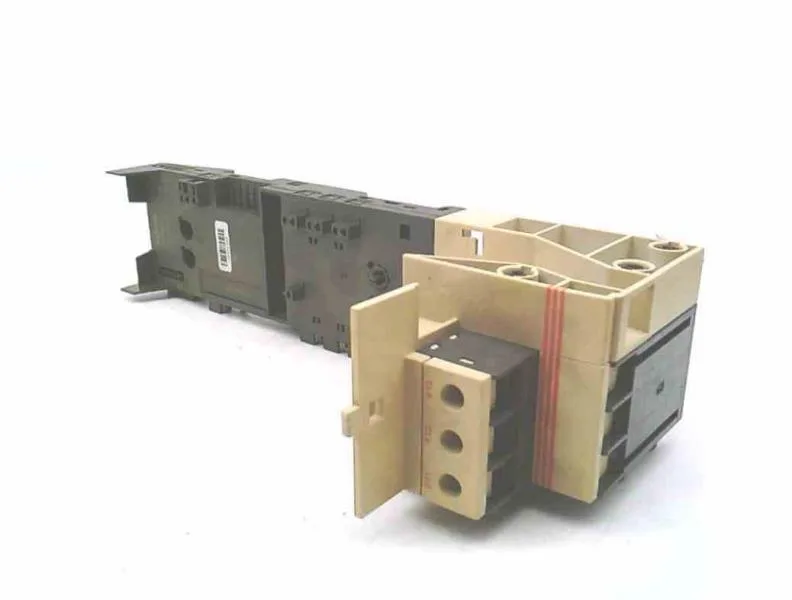

Siemens 3RK1903-0AL10 Terminal Module, ET200S Reversing Star

MPN3RK1903-0AL10

Siemens SIRIUS 3RK1903-0AL10 terminal module, 130 mm, for ET200S High Feature Reversing starter without supply line connection, lifecycle stage current.

$148.59Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RK1903-0AL10 — Specifications
ParameterValue
Substance prohibitance05/01/2012

Product details

The 3RK1903-0AL10: Because this is a terminal module and not a contactor or power block, its key spec is the 130 mm width — that's the space it occupies on the DIN rail inside the ET200S assembly. If your panel layout was designed around a standard 55 mm contactor footprint (like the SIRIUS S2 frame), this module is over twice the width, so it won't drop into the same slot without re-railing. The 'without supply line connection' variant means it takes its feed from an adjacent module — verify the busbar or jumper scheme in your existing ET200S string before committing the BOM line.

Deployment context

It's rated IP20 on the front, so it belongs inside a control cabinet, not in a washdown or outdoor zone. If you're retrofitting into an existing ET200S station, check the slot assignment: the High Feature Reversing starter requires this specific terminal module to handle the reversing contactor wiring; a standard ET200S terminal module won't carry the same internal bus routing.

Frequently asked questions

What is the substance prohibitance date for this part?

The substance prohibitance date is 05/01/2012, which aligns with RoHS compliance requirements.

Will the 3RK1903-0AL10 fit into a panel designed for a 3RT1036-1AB00 contactor?

No — the 3RK1903-0AL10 is a 130 mm terminal module for the ET200S system, while the 3RT1036-1AB00 is a 55 mm SIRIUS S2 contactor. They serve different functions and have different DIN-rail footprints; you would need to rework the panel layout and bus routing.

What compliance documentation does Siemens provide for this part?

The record includes a substance prohibitance date of 05/01/2012, indicating RoHS compliance. Siemens typically provides REACH and UL documentation on request, but those are not in this listing.

MPN
3RK1903-0AL10
