What this BaseUnit does in a panel

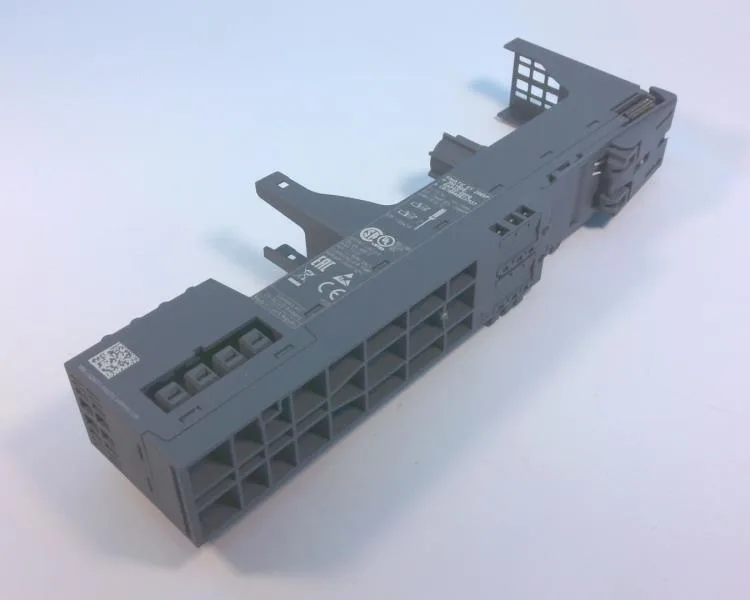

The Siemens 3RK1908-0AP00-0AP0 is a SIMATIC BaseUnit designed for AC/DC feed-in, serving as the power distribution backbone for a row of I/O modules on a DIN rail. It accepts a 24 VDC supply (20.4 V minimum, 28.8 V maximum) and distributes it to the connected modules at up to 7 A — enough for a modest I/O cluster, but watch the total draw if you are populating a dense string of high-current outputs. Pollution degree 2 means it is rated for normal industrial environments where only non-conductive pollution occurs (occasional condensation).
Terminals and wiring
Both the main current circuit and the auxiliary/control circuit use spring-loaded push-in terminals. Accepts 1x 0.5 to 2.5 mm² solid wire (or 1x 18 to 10 AWG for the supply). Standard 0.6 mm x 3.5 mm slot screwdriver for release. The push-in design saves time over screw clamps — strip to 8–10 mm, push in, done. Dimensions: 30 mm wide, 215 mm high, 75 mm deep. Mounts vertically or horizontally on DIN rail. Clearance above and below the unit is 50 mm each for airflow and wiring access.
Environmental range
Handles 10–95 % relative humidity non-condensing, and air pressure from 900 to 1060 hPa. Shock rated at 6g for 11 ms; vibration resistance is 15 mm at 6 Hz, then 2g up to 500 Hz. This is a panel-grade component — fine for most factory-floor environments, but not rated for direct washdown (no IP rating listed).
