AS-i Field I/O Module — 4 Inputs, 4 Outputs, IP67

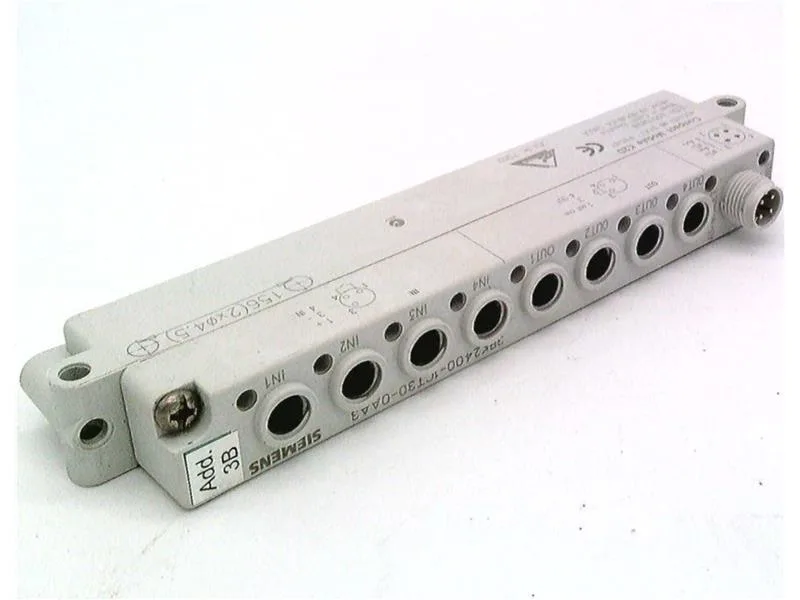

The Siemens 3RK2400-1CT30-0AA3 is an AS-Interface (AS-i) digital I/O module from the K20 family, designed for distributed field mounting. It provides 4 PNP inputs and 4 solid-state outputs, each rated to 2 A maximum at 40 °C ambient, with built-in short-circuit and induction protection. The module requires an AS-i master compliant with Specification 3.0 and supports A/B slave addressing (ID code A/7). An external auxiliary supply (AUX POWER) of 20 to 30 VDC, compliant with VDE 0106 (PELV, protection class III), is mandatory for powering the output circuits — the AS-i bus cable alone cannot drive the outputs. Rated IP67, the housing is suited for washdown environments and direct installation on machinery without an enclosure. The 20 mm wide body mounts without a backplate, and the M12 female connectors carry the I/O mapping: PIN 4 on sockets 1-4 carries inputs D0-D3; sockets 5-8 carry outputs D0-D3.
This order code is listed as current production (active lifecycle stage).
