Siemens 3RK3131-2AC10

Siemens 3RK3131-2AC10 SIRIUS Central Unit, SIL CL 3, 4/8 F-D

MPN 3RK3131-2AC10
NRND

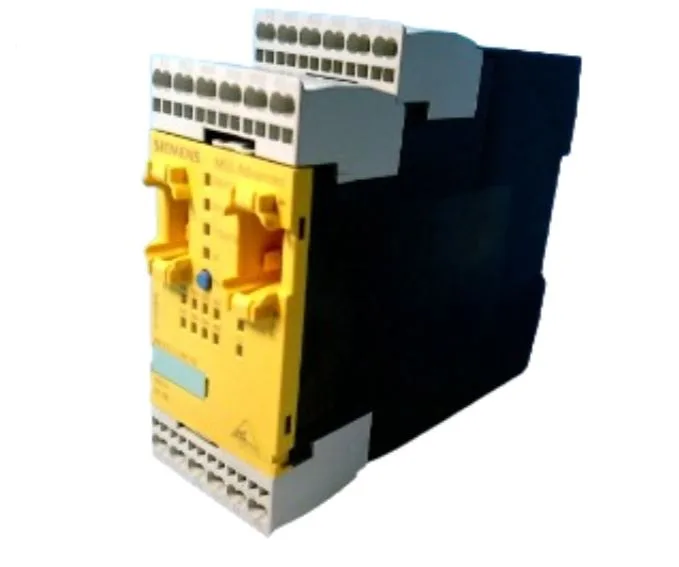

Siemens SIRIUS modular safety system central unit, 3RK3131-2AC10, 4/8 F-DI, 1 F-RO, 1 F-DO, SIL CL 3, PROFIBUS DP, IP20, snap-on DIN rail.

$802.39 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

3RK3131-2AC10 specifications
ParameterValue
IP ratingIP20
Depth124 mm
Width45 mm
Height113 mm
Input delay time0 ... 150 ms

Product details

Safety-rated central unit for modular guarding

The Siemens SIRIUS 3RK3131-2AC10 is a modular safety system central unit, configured as 4/8 fail-safe digital inputs, 1 fail-safe relay output, and 1 fail-safe digital output. Its SIL CL 3 rating per IEC 61508 means it is qualified for safety functions up to that integrity level — suitable for EMERGENCY STOP circuits and valve monitoring in a guarded zone. Snap-mounted onto a DIN rail or screw-mounted with an additional push-in lug, the unit sits inside a standard IP20 enclosure — typical for a control cabinet where the safety logic lives separate from the field I/O. Input delay is parameterizable from 0 to 150 ms, allowing the designer to filter out contact bounce on safety gates without adding external timers.

PROFIBUS DP integration and data width

When paired with the DP interface module, the central unit communicates over PROFIBUS DP with 64-bit cyclical data. This allows the safety CPU to read all input states and output commands in a single bus cycle, keeping the safety reaction time predictable. The unit supports parameterizable inputs and outputs, so the safety logic can be tuned per machine zone without firmware changes.

Rated for operation from -20 to +60 °C and storage from -40 to +85 °C, with a shock resistance of 15g / 11 ms. Mounting position is vertical only — horizontal installation is not supported per the spec.

MPN
3RK3131-2AC10
