Siemens 3RK3141-2CD10

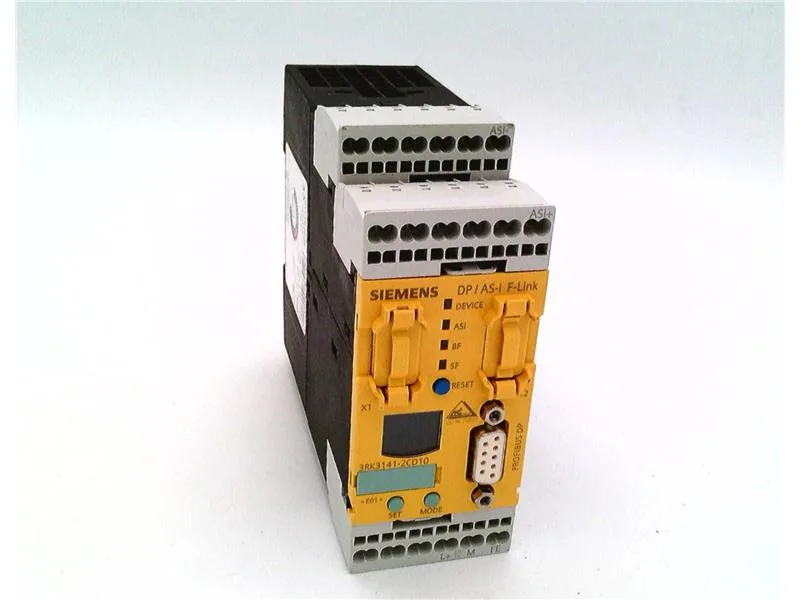

Siemens 3RK3141-2CD10 PROFIsafe/ASIsafe F-Link, 45mm, IP20

MPN 3RK3141-2CD10

Siemens 3RK3141-2CD10 PROFIsafe/ASIsafe F-Link, PROFIBUS protocol, galvanic isolation, EN 954-1 category 4, 45 x 113 x 124mm, IP20, 24 V DC supply.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

3RK3141-2CD10 specifications
ParameterValue
IP ratingIP20
Depth124 mm
Width45 mm
Height113 mm

Product details

The Siemens 3RK3141-2CD10 is a PROFIsafe/ASIsafe F-Link gateway — it bridges a PROFIBUS safety controller to an AS-Interface safety network (ASIsafe). That means a safety PLC on PROFIBUS can talk to AS-i safety slaves (emergency stops, light curtains, safety mats) through this single module.

Rated category 4 per EN 954-1, this gateway supports the highest architectural category under that standard — redundant channels with cross-monitoring, so a single fault cannot cause loss of the safety function. For a safety circuit guarding a robot cell or press, that category 4 rating is what lets you wire a single AS-i safety slave and still meet the control-reliable requirement.

PROFIBUS and AS-Interface — the protocol pair

On the fieldbus side it speaks PROFIBUS (not PROFINET — no PROFINET IO or CBA here). On the AS-Interface side it handles both standard AS-i and ASIsafe traffic. Galvanic isolation between the PROFIBUS and AS-i segments keeps ground loops from coupling into the safety bus. The module draws up to 100 mA from the 24 V DC supply when using AS-i Power24V.

The housing is 45 mm wide, 113 mm tall, 124 mm deep — IP20, so it belongs inside a clean, dry enclosure, not out on the plant floor. Power loss is 3 W, which matters if you're packing several of these in a row and sizing the enclosure ventilation.

MPN
3RK3141-2CD10
