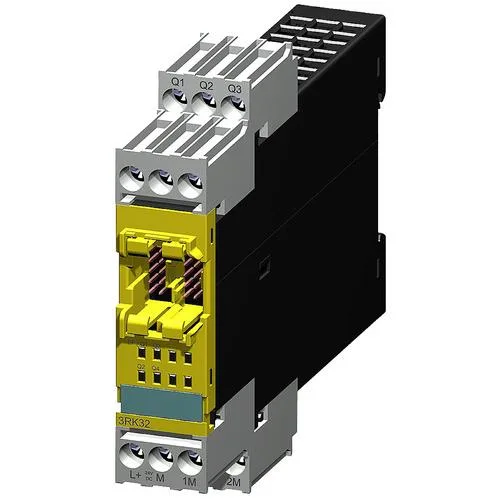

The Siemens 3RK3242-1AA10 is a SIRIUS modular safety system expansion module with four fail-safe digital outputs (4 F-DO). It's rated to the highest functional safety levels: category 4 per EN 954-1 and EN ISO 13849-1, performance level e, and SIL 3 per IEC 61508 and IEC 62061. That means it's certified for safety functions up to the most demanding risk reduction — think emergency stop circuits, light curtain monitoring, or two-hand control evaluation on a production line. The 24 VDC control supply is standard for control panels, and the IP20 housing with finger-safe touch protection keeps personnel safe during maintenance.
The 22.5 mm width means it takes a single slot — tight for dense safety arrays. Depth is 124 mm, which clears most standard 150 mm deep enclosures. Screw-type terminals for field wiring; strip length and torque follow standard Siemens practice. The module is designed for a pollution degree 3 environment, so it's fine for typical industrial panels with conductive dust or humidity up to 95% non-condensing.
