Siemens 3RP1505-2AW30 SIRIUS Time Relay, ON/OFF Delay, 0.05-

Name: 3RP1505-2AW30
Brand: Siemens
SKU: 3RP1505-2AW30
Availability: LimitedAvailability
Author: Huaqiang Hank

Specifications

Identification

3RP1505-2AW30 — Identification
Parameter	Value
Product designation	timing relay

Timing

3RP1505-2AW30 — Timing
Parameter	Value
ON-delay	Yes
OFF-delay	Yes
Delayed switching	1
At 24 V	1 A
Influence of ambient temperature	±5 %

Electrical

3RP1505-2AW30 — Electrical
Parameter	Value
Control supply voltage type (AC/DC)	AC/DC
At 50 Hz	24 ... 240 V
At 60 Hz	24 ... 240 V
Rated surge voltage withstand	4 000 V
Initial value	0.8
Full-scale value	1.1

Output / Contacts

3RP1505-2AW30 — Output / Contacts
Parameter	Value
At 250 V	0.1 A
At 125 V	0.2 A

Environmental

3RP1505-2AW30 — Environmental
Parameter	Value
Operating temperature range	-25 ... +60 °C
Storage temperature range	-40 ... +85 °C
Transport temperature range	-40 ... +85 °C
Operating humidity range	10 ... 95 %
IP protection rating	IP20
Pollution degree	3
Max. installation altitude	2 000 m
Shock resistance (IEC 60068-2-27)	11g / 15 ms
Vibration resistance (IEC 60068-2-6)	10 ... 55 Hz / 0.35 mm
ESD immunity (IEC 61000-4-2)	4 kV contact discharge / 8 kV air discharge
Burst immunity (IEC 61000-4-4)	2 kV network connection / 1 kV control connection

Mechanical

3RP1505-2AW30 — Mechanical
Parameter	Value
Fastening method	screw and snap-on mounting onto 35 mm DIN rail
Mounting position	any
Removable terminals	Yes
Width	22.5 mm
Height	103 mm
Depth	91 mm
Wire range, solid (AWG)	24 ... 16
Wire range, stranded (AWG)	24 ... 16
Wire range, finely stranded w/ ferrule (mm²)	0.3 ... 1.5 mm²
Clearance, rear	0 mm
Clearance, front	0 mm
Clearance, sides	0 mm
Clearance, top	0 mm
Clearance, bottom	0 mm

Product details

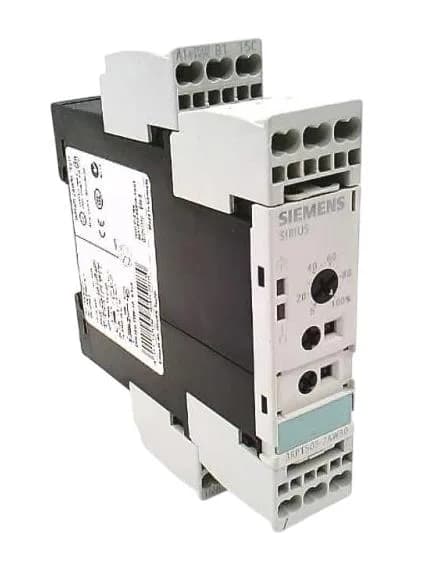

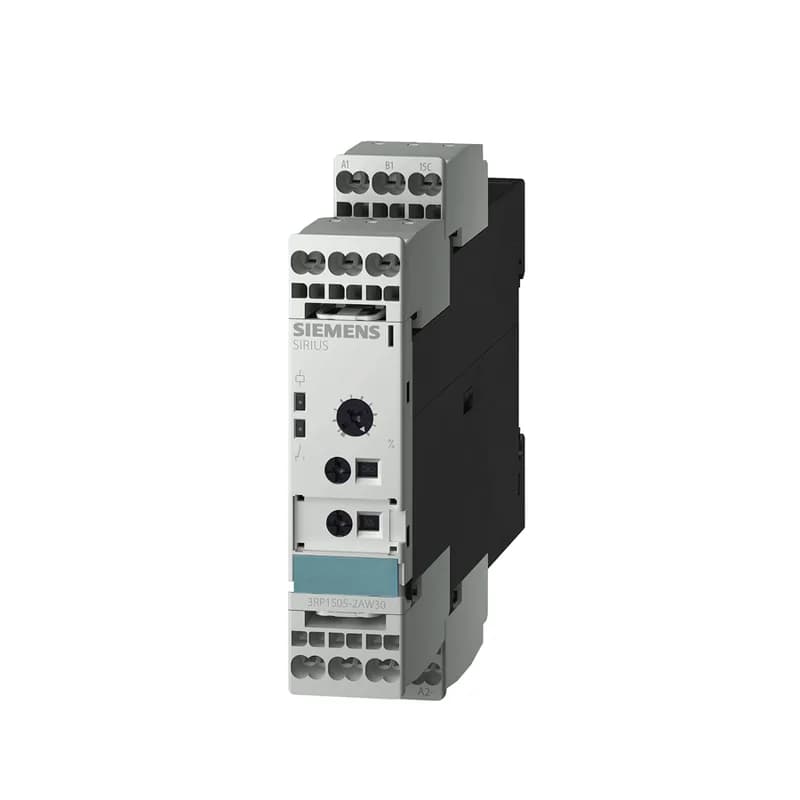

The Siemens 3RP1505-2AW30 is a SIRIUS time relay offering both ON-delay and OFF-delay functions with an adjustable time range of 0.05 to 100 seconds. It switches a relay output rated for a thermal current of 5 A, and the control supply accepts 24 to 240 V AC at 50/60 Hz or 24 to 240 V DC. The 22.5 mm wide housing snaps onto a 35 mm DIN rail and can be screw-mounted as well — a standard panel footprint that fits alongside other SIRIUS control gear.

Integration

Mounts in any position on a 35 mm DIN rail — screw and snap-on fastening. The 22.5 mm width and 91 mm depth leave clearance for adjacent modules in a crowded enclosure. Operating temperature range of -25 to +60 °C covers most control-panel environments without derating.
