Siemens 3RP1532-1AP30

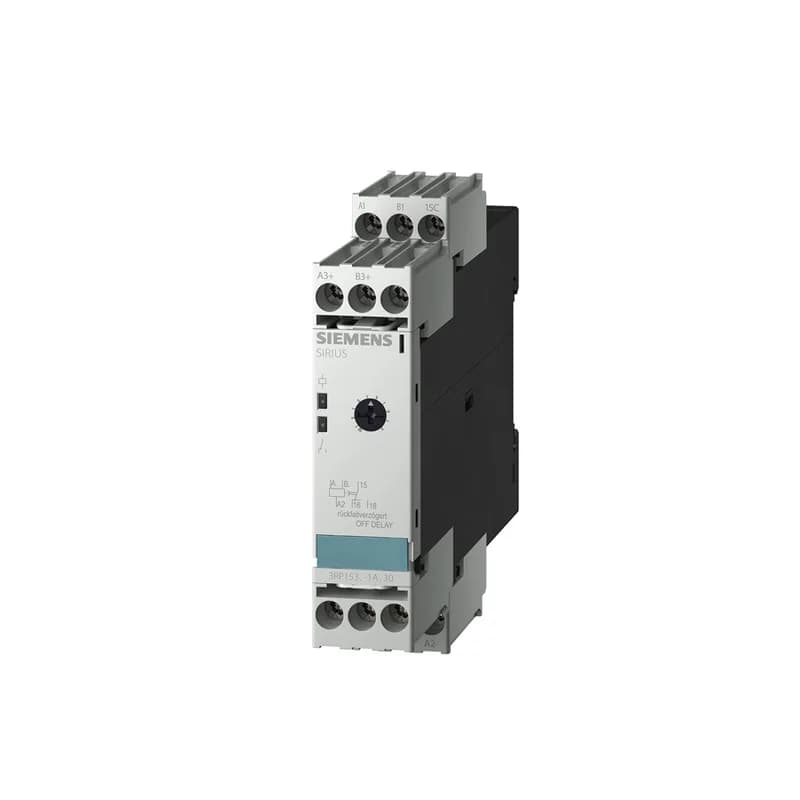

Siemens 3RP1532-1AP30 SIRIUS time delay relay, 1.5–30 s

MPN 3RP1532-1AP30

Siemens SIRIUS 3RP1532-1AP30 off-delay time delay relay, 200... 240 V 50/60 Hz, 24 V DC, 1.5... 30 s, 5 A thermal, DIN rail.

$98.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

3RP1532-1AP30 specifications
ParameterValue
IP ratingIP20
Depth91 mm
Width22.5 mm
Height102 mm
Recovery time150 ms

Product details

What the timer actually does

The 3RP1532-1AP30 is a SIRIUS off-delay time relay — a DIN-rail timer that holds its output closed for an adjustable 1.5... 30 s after the control signal is removed, rather than delaying turn-on. That distinction matters on drop-out sequencing: where an ON-delay waits before a contactor pulls in, this one keeps the coil of a downstream contactor energized through the brief loss of an enable signal. It is not a pulse-shaping, additive ON-delay, or star-delta unit — those functions are separate SIRIUS timer variants, not roles this code serves.

Contact rating and what it drives

The output is rated for a thermal current of 5 A. Recovery time after drop-out is 150 ms, and the minimum ON period is 35 ms — both set the floor on how fast a downstream PLC input can retrigger the sequence.

Panel fit and wiring envelope

The housing is 22.5 mm wide, 102 mm tall, and 91 mm deep — the slim SIRIUS 17.5/22.5 mm pitch footprint that drops into a standard DIN-rail row next to other control relays. Mounting position is unrestricted, so the timer can sit in a vertical section of the cabinet without derating. Operating temperature spans -25... +60 °C in service and -40... +85 °C in transit and storage; the device carries basic insulation and is intended for installation inside an enclosure, not field-exposed mounting.

Sourcing the SIRIUS 3RP1532-1AP30

Independent sourcing through this channel is on a quoted-to-order basis against the BOM quantity — lead time and volume pricing confirmed at RFQ.
