Siemens 3RP1532-2AP30

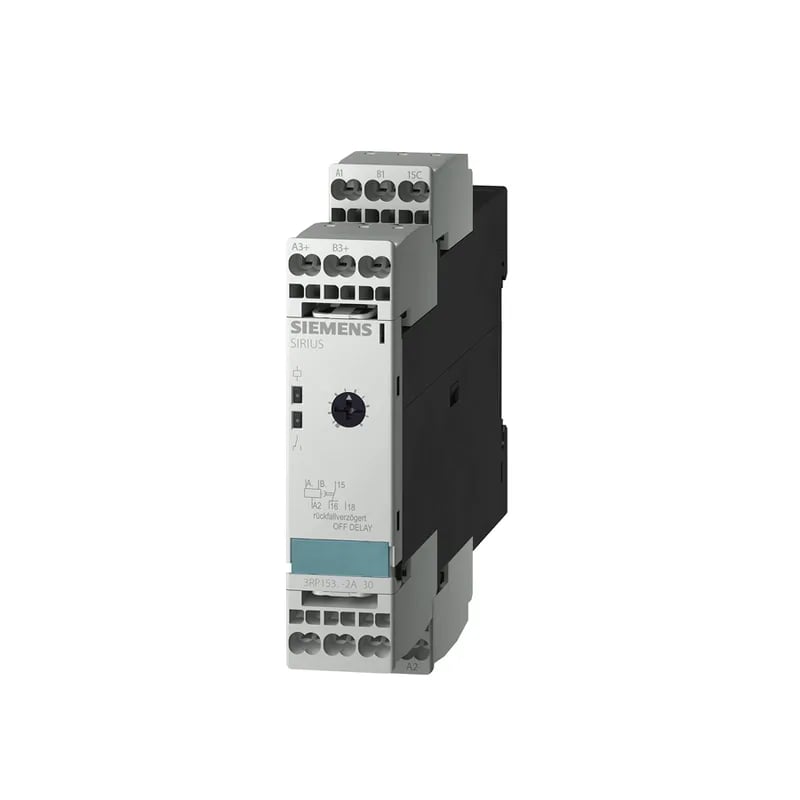

Siemens 3RP1532-2AP30 Time Delay Relay, 24 V DC, 1.5-30 s

MPN 3RP1532-2AP30

Siemens SIRIUS 3RP1532-2AP30 time delay relay, OFF-delay, 200-240 V AC 50/60 Hz and 24 V DC, adjustable 1.5-30 s, 5 A relay output, DIN rail mount.

$101.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

3RP1532-2AP30 specifications
ParameterValue
IP ratingIP20
Depth91 mm
Width22.5 mm
Height103 mm
Recovery time150 ms

Product details

Function and supply envelope

The 3RP1532-2AP30 sits in the SIRIUS 3RP timer family and runs an OFF-delay function on its own — no separate trigger line required — with the timing range adjustable from 1.5 to 30 s. Supply is dual-rated: 200 to 240 V AC at either 50 Hz or 60 Hz, and 24 V DC, so the same timer drops into a control transformer secondary or a 24 V control rail without rewiring the cabinet.

Output contacts and switching limits

Recovery time is 150 ms and the minimum ON period is 35 ms, so on short input pulses the timing accuracy is bounded by these figures rather than the dialed delay.

Panel fit and wiring

Housing is 22.5 mm wide, 103 mm tall, and 91 mm deep, with screw and snap-on fastening onto a 35 mm standard mounting rail and an any-orientation mounting position — useful where the cabinet layout forces a non-vertical DIN run.
