Siemens 3RP1540-1BN31

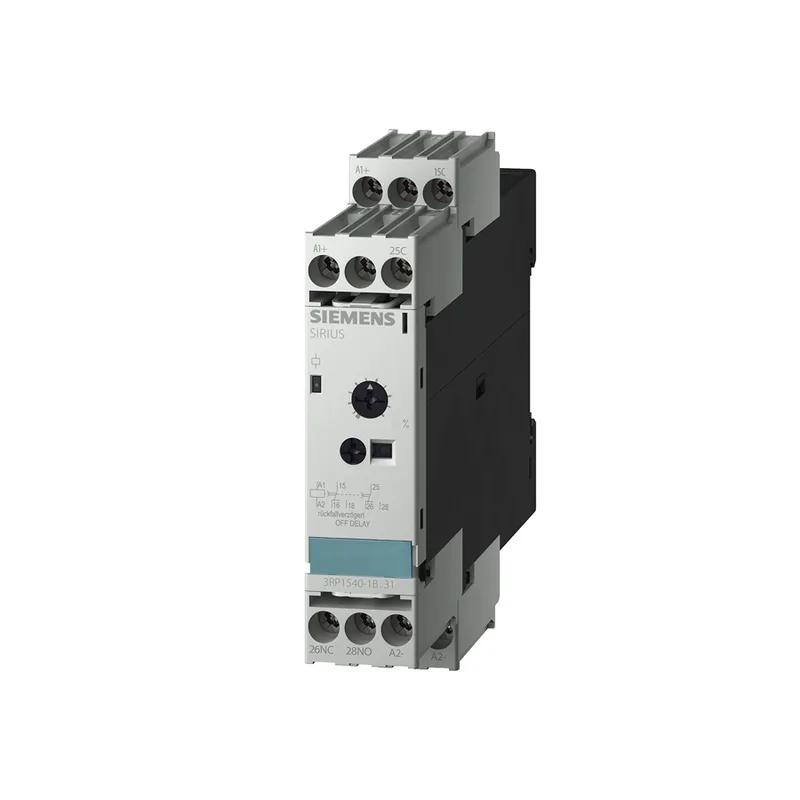

Siemens 3RP1540-1BN31 SIRIUS Time Relay, 0.05-600s, 200-240V

MPN 3RP1540-1BN31

Siemens SIRIUS 3RP1540-1BN31 time relay, adjustable 0.05-600 s, 200-240 V AC/DC supply, 5 A thermal current, relay output, screw and snap-on mounting onto 35 mm DIN rail.

$145.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

3RP1540-1BN31 specifications
ParameterValue
IP ratingIP20
Depth91 mm
Width22.5 mm
Height102 mm
Recovery time150 ms

Product details

The Siemens 3RP1540-1BN31 is a SIRIUS time relay with an adjustable delay range of 0.05 to 600 seconds, powered by a 200-240 V supply that accepts both AC (50/60 Hz) and DC. It switches via a relay output rated for a 5 A thermal current, with contact ratings of 1 A at 24 V, 0.2 A at 125 V, and 0.1 A at 250 V. The unit snaps onto a 35 mm DIN rail and accepts stranded wire from 20 to 14 AWG at the screw terminals, torqued to 0.8-1.2 N·m.

The 22.5 mm width (one TE) and 91 mm depth fit neatly into a crowded DIN channel without stealing extra space. Mounting position is unrestricted, so it can go sideways or upside-down in a tight gland-plate layout.

The 0.05-600 s adjustable time covers most industrial timing needs — from a short pulse delay on a conveyor interlock to a longer off-delay for a pump sequence. The 5 A thermal current is the continuous carry rating through the relay contacts; the actual switching capacity depends on voltage (1 A at 24 V, derating to 0.1 A at 250 V). Recovery time of 150 ms means the relay resets quickly between cycles — important for rapid-repeat applications.

MPN
3RP1540-1BN31
