Siemens 3RP1540-2AB31

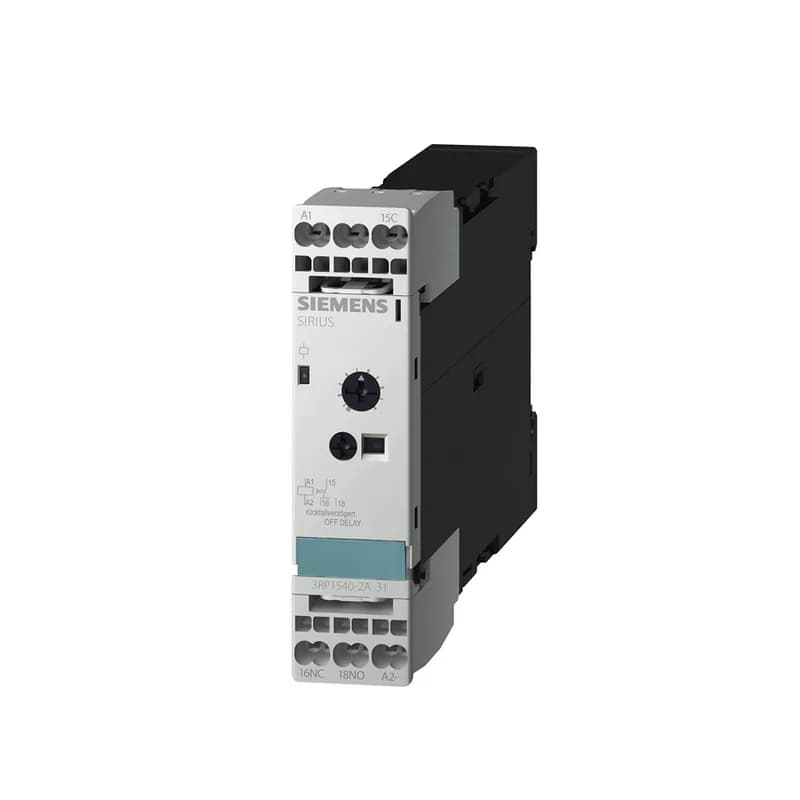

Siemens 3RP1540-2AB31 SIRIUS Timing Relay, 0.05–600 s, 24 V

MPN 3RP1540-2AB31

Siemens SIRIUS timing relay, 3RP1540-2AB31, 24 V DC, adjustable time 0.05–600 s, 5 A thermal current, screw and snap-on 35 mm DIN rail mounting.

$127.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

3RP1540-2AB31 specifications
ParameterValue
IP ratingIP20
Depth91 mm
Width22.5 mm
Height84 mm
Recovery time150 ms

Product details

The adjustable time range spans 0.05 to 600 s, set via a front-panel potentiometer or DIP switches depending on variant — this unit carries a 0.85 initial value multiplier and 1.1 full-scale factor, meaning the actual delay equals the dial setting times these coefficients. Recovery time between cycles is 150 ms, and the minimum ON period is 200 ms, so it won't retrigger on fast transients. The relay contact is rated 1 A at 24 V DC, 0.2 A at 125 V DC, and 0.1 A at 250 V AC/DC — these are the switching limits, not the continuous carry current. The thermal current (Ith) is 5 A, which governs the continuous current through the contact path when the relay is not switching. For a 24 V DC control circuit, the 1 A switching rating is the number to check against your load's inrush and breaking requirements. The 22.5 mm width fits standard enclosure rail spacing; any mounting position is allowed.

Screw terminals accept 2 x (24–16 AWG) solid or stranded conductors. The 22.5 mm width and 91 mm depth fit standard 35 mm DIN rail enclosures; no additional clearance is required in any direction (0 mm spacing upwards, downwards, forwards, backwards, and to the side). Basic insulation with pollution degree 3 suits industrial control panels where conductive dust or humidity is present.

MPN
3RP1540-2AB31
