Siemens 3RP2005-2BW30

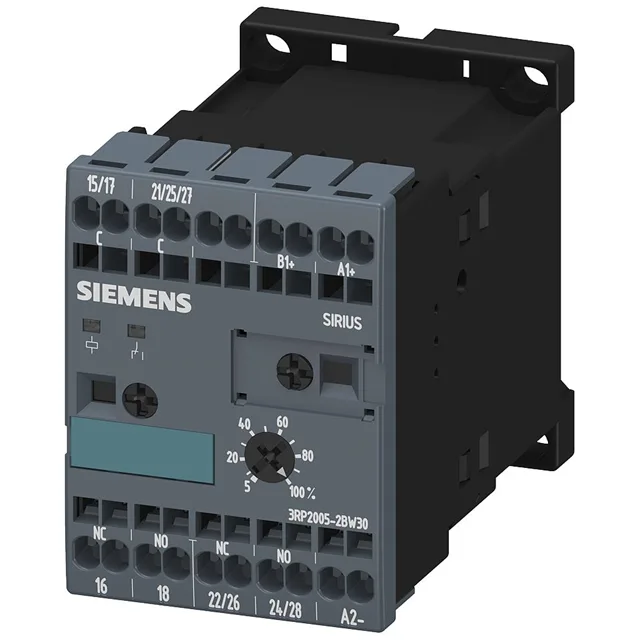

Siemens 3RP2005-2BW30 Time Delay Relay, SIRIUS, 0.05–100 s

MPN 3RP2005-2BW30
Active

Siemens SIRIUS 3RP2005-2BW30 multifunction time delay relay, 24–240 V AC/DC, 0.05–100 s, 5 A thermal current, DIN rail mount.

$98.00 – $238.36 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

3RP2005-2BW30 specifications
ParameterValue
Depth73 mm
Width45 mm
Height57 mm
Recovery time150 ms

Product details

Where this relay earns its DIN slot

The 3RP2005-2BW30 is a SIRIUS multifunction timer from Siemens covering ON-delay, OFF-delay, additive ON-delay, pulse-shaping, and star-delta duties in one module — one part number replaces what would otherwise be a stack of single-function timers in a motor starter or sequence-control lineup.

Coil and contact ratings

Coil accepts 24–240 V on both AC (50/60 Hz) and DC, so the same SKU feeds off a 24 VDC pilot rail or a 120/230 VAC control transformer without re-specifying. Screw terminals accept 24–14 AWG solid or stranded wire. The relay output is a single-pole changeover handling low-power switching — sized for the coil side of contactors and indicator loads, not for direct motor switching.

Timing range and repeat behaviour

Adjustable time span runs 0.05–100 s across a scale marked from initial value 0.8 to full-scale 1.1, with recovery time of 150 ms after the timer resets before it will accept the next trigger. Minimum ON period is 35 ms, short enough for pulse-shaping duty on fast sequence pulses without chatter.

Footprint on the rail

Mounting position is unrestricted (any orientation), which matters when the timer lands in a tall, narrow panel section rather than a horizontal wireway.

Environmental envelope

Degree of pollution 3 with basic insulation — a standard industrial panel rating, meaning the relay sits in a normal closed enclosure but not in a washdown or outdoor cabinet without further protection.

MPN
3RP2005-2BW30
