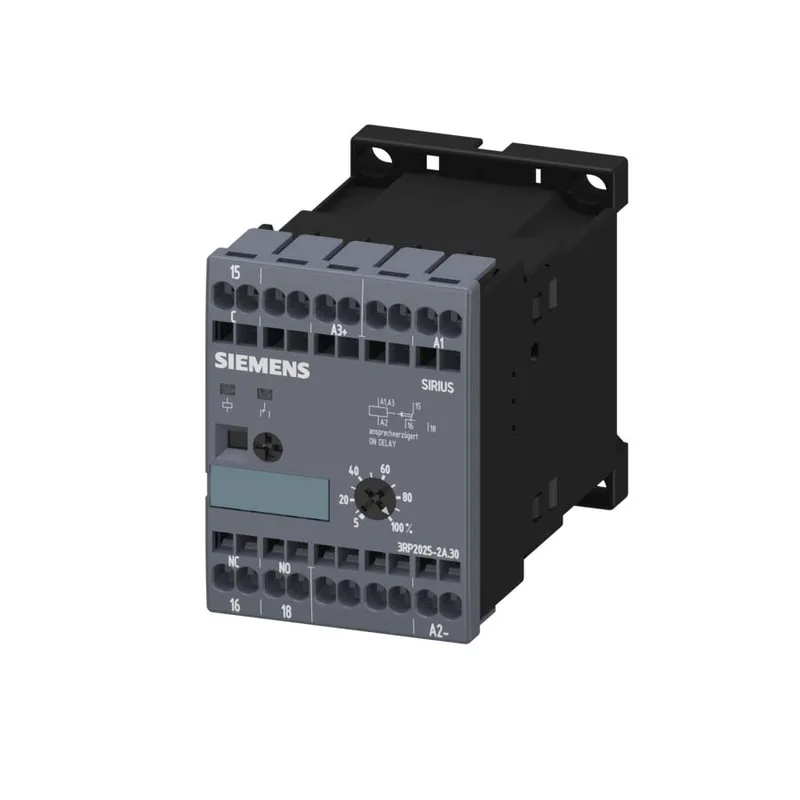

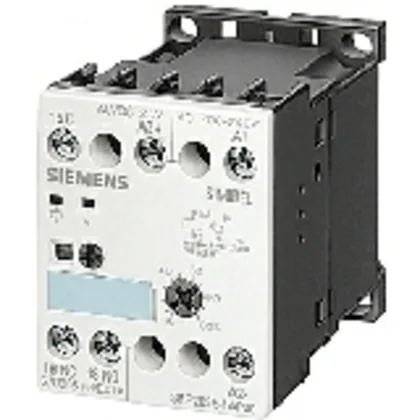

Siemens 3RP2025-2AP30
MPN3RP2025-2AP30
Active
Timing relay, electronic ansprechverzögert 1 change-over contact 24 V AC/DC, 200 to 240 V AC at 50/60 Hz AC 0.05 s to 100 h Overall width 45 mm Spring-type terminal
$45.72 – $136.07Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Product designation | timing relay |
| Parameter | Value |
|---|---|
| ON-delay | Yes |
| OFF-delay | No |
| Delayed switching | 1 |
| At 24 V | 1 A |
| Influence of ambient temperature | ±5 % |
| Parameter | Value |
|---|---|
| Control supply voltage type (AC/DC) | AC/DC |
| At 50 Hz | 200 ... 240 V |
| At 60 Hz | 200 ... 240 V |
| Rated surge voltage withstand | 4 000 V |
| Initial value | 0.85 |
| Full-scale value | 1.1 |
| Parameter | Value |
|---|---|
| At 250 V | 0.1 A |
| At 125 V | 0.2 A |
| Parameter | Value |
|---|---|
| Operating temperature range | -25 ... +60 °C |
| Storage temperature range | -40 ... +85 °C |
| Transport temperature range | -40 ... +85 °C |
| Operating humidity range | 10 ... 95 % |
| Pollution degree | 3 |
| Max. installation altitude | 2 000 m |
| Shock resistance (IEC 60068-2-27) | 11g / 15 ms |
| Vibration resistance (IEC 60068-2-6) | 10 ... 55 Hz / 0.35 mm |
| ESD immunity (IEC 61000-4-2) | 4 kV contact discharge / 8 kV air discharge |
| Burst immunity (IEC 61000-4-4) | 2 kV network connection / 1 kV control connection |
| Parameter | Value |
|---|---|
| Fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| Mounting position | any |
| Removable terminals | No |
| Width | 45 mm |
| Height | 57 mm |
| Depth | 73 mm |
| Wire range, solid (AWG) | 24 ... 14 |
| Wire range, stranded (AWG) | 24 ... 14 |
| Wire range, finely stranded w/ ferrule (mm²) | 0.3 ... 1.5 mm² |
| Clearance, rear | 0 mm |
| Clearance, front | 0 mm |
| Clearance, sides | 0 mm |
| Clearance, top | 0 mm |
| Clearance, bottom | 0 mm |
MPN
3RP2025-2AP30
