Form factor and panel fit

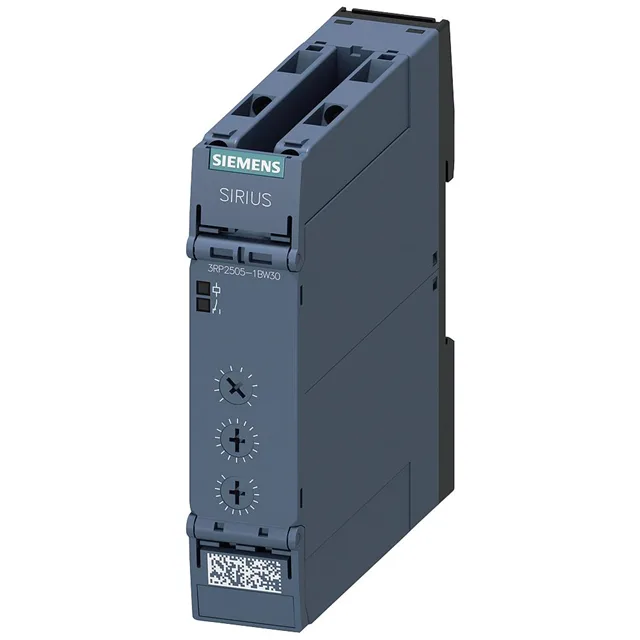

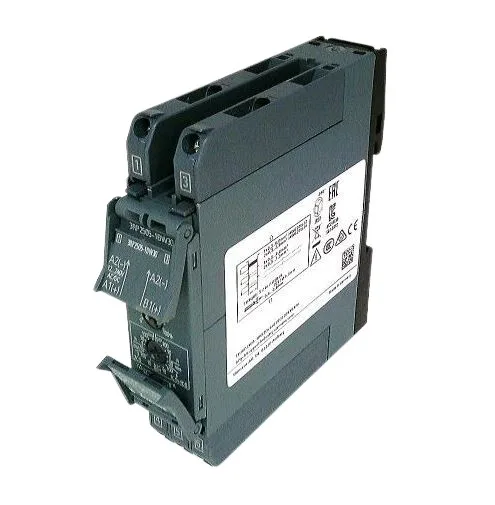

The 3RP2505-1BW30: Any mounting orientation is allowed and the tightening torque for the terminals is 0.6... 0.8 N·m — the clamp range covers solid 20... 12 AWG and stranded 20... 14 AWG, so the same lugs used on the rest of the SIRIUS row land here without re-stripping.
Control supply and time range
The control supply accepts 12... 240 V whether the source is DC, 50 Hz, or 60 Hz, so a single catalog code covers the 24 VDC cabinet bus, 120 VAC control transformer, and 230 VAC line — one part for mixed-voltage panels rather than three. Adjustable time spans 0.05 s... 100 h with a minimum ON period of 35 ms and a recovery time of 250 ms, which is wide enough to replace a stack of single-function timers (ON-delay, OFF-delay, pulse-delayed, pulse-shaping, additive ON-delay, star-delta) on the same DIN slot.
Contact ratings in real circuits
Two delayed-switching outputs give the wiring flexibility to run two independent time functions off the same timer, and the operating envelope of -25... +60 °C (with -40... +85 °C transport and storage) covers unheated cabinets and most outdoor enclosures.
Lifecycle and panel-spare posture
Lifecycle status is listed as current on the record, so the 3RP2505-1BW30 remains in normal production flow through Siemens' SIRIUS distribution channel. For a spare-parts strategy, the wide supply range and multifunction set mean a small on-hand quantity covers several replacement scenarios across a plant — one RFQ line replaces what would otherwise be a shelf of single-function timers.
