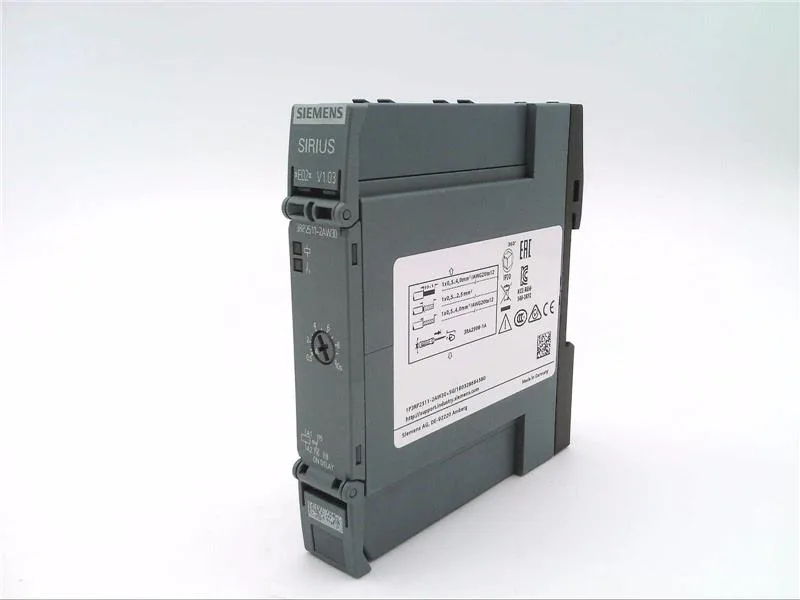

Siemens 3RP2511-2AW30 — Time Delay Relays

Siemens 3RP2511-2AW30

MPN3RP2511-2AW30
Active

Timing relay, electronic ansprechverzögert 1 change-over contact, 1 time range 0.5...10 s 12-240 V AC/DC at 50/60 Hz AC with LED, Spring-type terminal (push-in)

$35.56Ref. price · indicative, final on quote
Siemens 3RP2511-2AW30 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

3RP2511-2AW30 — Identification
ParameterValue
Product designationtiming relay
3RP2511-2AW30 — Timing
ParameterValue
ON-delayYes
OFF-delayNo
Delayed switching1
At 24 V1 A
Influence of ambient temperature1% in the whole temperature range to the set runtime
3RP2511-2AW30 — Electrical
ParameterValue
Control supply voltage type (AC/DC)AC/DC
At 50 Hz12 ... 240 V
At 60 Hz12 ... 240 V
Rated surge voltage withstand4 000 V
Initial value0.8
Full-scale value1.1
3RP2511-2AW30 — Output / Contacts
ParameterValue
At 250 V0.1 A
At 125 V0.2 A
3RP2511-2AW30 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Storage temperature range-40 ... +85 °C
Transport temperature range-40 ... +85 °C
Operating humidity range10 ... 95 %
IP protection ratingIP20
Pollution degree3
Max. installation altitude2 000 m
Shock resistance (IEC 60068-2-27)11g / 15 ms
Vibration resistance (IEC 60068-2-6)10 ... 55 Hz / 0.35 mm
ESD immunity (IEC 61000-4-2)4 kV contact discharge / 8 kV air discharge
Burst immunity (IEC 61000-4-4)2 kV network connection / 1 kV control connection
3RP2511-2AW30 — Mechanical
ParameterValue
Fastening methodscrew and snap-on mounting onto 35 mm DIN rail
Mounting positionany
Removable terminalsYes
Width17.5 mm
Height100 mm
Depth90 mm
Wire range, solid (AWG)20 ... 12
Wire range, stranded (AWG)20 ... 12
Wire range, finely stranded w/ ferrule (mm²)0.5 ... 2.5 mm²
Clearance, rear0 mm
Clearance, front0 mm
Clearance, sides0 mm
Clearance, top0 mm
Clearance, bottom0 mm
MPN
3RP2511-2AW30
