Siemens 3RT1015-1BB42 — Contactors

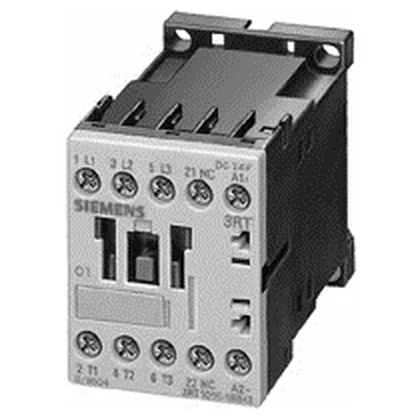

Siemens 3RT1015-1BB42 SIRIUS Power Contactor, 24 V DC, S00

MPN3RT1015-1BB42

Siemens SIRIUS 3RT1015-1BB42 power contactor, Size S00, 24 V DC, screw terminals, IP20 front, 72 mm deep.

$25.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1015-1BB42 — Identification
ParameterValue
Contactor frame sizeS00
3RT1015-1BB42 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V6.5 A
Rated value @ 400 V3 A
Rated value @ 500 V3.5 kW
Rated value @ 690 V4 kW
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1015-1BB42 — Control & Coil
ParameterValue
Control supply voltage typeDC
3RT1015-1BB42 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1015-1BB42 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusefuse gL/gG: 35 A
Short-circuit coordination type 2, fusefuse gL/gG: 20 A
Aux. switch short-circuit protection, fusefuse gL/gG: 10 A
3RT1015-1BB42 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Aux. / control circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
Conductor cross-section, solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Side-by-side mountingYes
3RT1015-1BB42 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1015-1BB42 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
Installation altitude, max.2 000 m
3RT1015-1BB42 — Mechanical
ParameterValue
Width45 mm
Height57.5 mm
Depth72 mm

Product details

Mechanical life of 30 million operations means it handles high-cycle applications.

Key ratings for real motor applications

Coil power draw is steady at 3.3 W both closing and holding, so no intrusive inrush to the 24 V DC supply.

Occupies 45 mm width, 57.5 mm height, 72 mm depth. Side-by-side mounting allowed — no derating gap needed. Main circuit terminals accept 2x (0.5...1.5 mm²), 2x (0.75...2.5 mm²), max 2x (0.75...4 mm²) or 1x 12 AWG. Same range for auxiliary contacts. IP20 on front and terminals.

Frequently asked questions

What is the depth of 3RT1015-1BB42 on the DIN rail?

72 mm deep, with 45 mm width and 57.5 mm height.

What solid and stranded wire sizes does 3RT1015-1BB42 accept for main terminals?

Main screw terminals accept 2x (0.5…1.5 mm²), 2x (0.75…2.5 mm²), max 2x (0.75…4 mm²) or 1x 12 AWG.

Will 3RT1015-1BB42 drop into a panel designed around 3RT2028-1BB40?

No — the 3RT2028 is a larger frame with different mounting hole pattern and terminal spread. You cannot physically swap them without replacing the entire contactor assembly and retermination.

What compliance documentation is available for 3RT1015-1BB42?

RoHS compliance is indicated with a substance prohibitance date of 2006-07-01. Pollution degree 3 per IEC. Further certs (UL, CSA, CCC) not listed in this datasheet extract.
