Siemens 3RT1015-1HB41 — Contactors

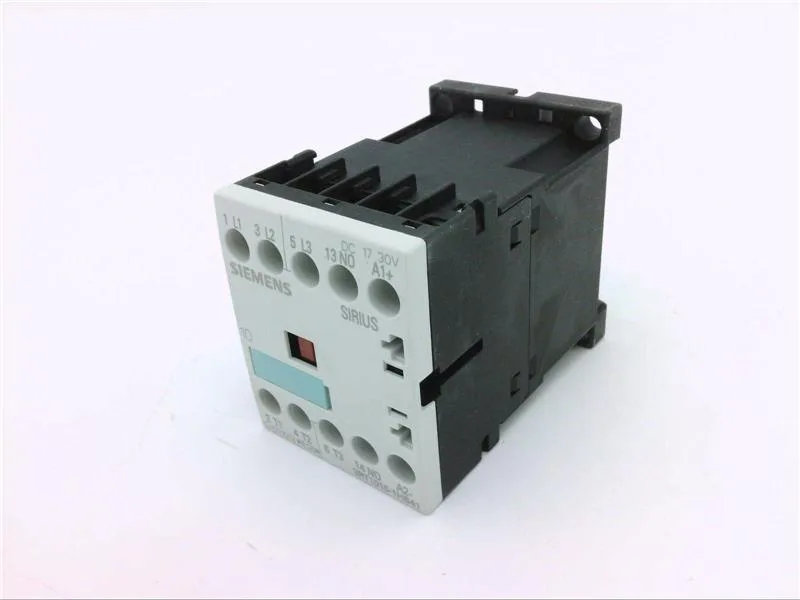

Siemens 3RT1015-1HB41 SIRIUS Power Contactor, 24 VDC Coil, S

MPN3RT1015-1HB41

Siemens SIRIUS power contactor, 3RT1015-1HB41, size S00, 24 VDC coil, screw-type terminals, snap-on 35 mm DIN rail mount.

$267.13Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1015-1HB41 — Identification
ParameterValue
Contactor frame sizeS00
3RT1015-1HB41 — Ratings & Performance
ParameterValue
Rated operational current, AC-4 @ 400 V6.5 A
Rated value @ 400 V3 A
Rated value @ 500 V3.5 kW
Rated value @ 690 V4 kW
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1015-1HB41 — Control & Coil
ParameterValue
Control supply voltage typeDC
3RT1015-1HB41 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1015-1HB41 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusefuse gL/gG: 35 A
Short-circuit coordination type 2, fusefuse gL/gG: 20 A
Aux. switch short-circuit protection, fusefuse gL/gG: 10 A
3RT1015-1HB41 — Connection & Mounting
ParameterValue
Main circuit connectionscrew-type terminals
Conductor cross-section, solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Side-by-side mountingYes
3RT1015-1HB41 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
3RT1015-1HB41 — Environmental
ParameterValue
Operating temperature range-25 ... +60 °C
3RT1015-1HB41 — Mechanical
ParameterValue
Width45 mm
Height57.5 mm
Depth72 mm

Product details

The coil is rated 24 VDC, pulling 2.3 W during closing and holding — a steady-state draw that matters for DC-supply sizing in a multi-contactor panel. The main contacts handle 10 A at 24 V (AC-12 resistive), and for motor duty at AC-4 at 400 V it's rated 6.5 A, which covers small conveyors or pump starters up to about 3 kW.

Main circuit terminals are screw-type, accepting 2x (0.5 to 1.5 mm²), 2x (0.75 to 2.5 mm²), or up to 2x (0.75 to 4 mm²) solid or stranded wire. That range covers common control wiring sizes; for larger feeds, the AWG equivalents are 2x (20 to 16), 2x (18 to 14), or 1x 12.

For Type 1 coordination (contactor may need replacement), the fuse can go up to 35 A. That's the standard selectivity guidance for this frame size — useful when designing a feeder that must clear faults without upstream breaker trips.

Frequently asked questions

What is the closest functional second-source — 3RT1015-1BB42?

The 3RT1015-1BB42 is a peer in the same SIRIUS S00 frame, but it uses a 24 VAC/DC coil instead of the 24 VDC-only coil on the 1HB41. If your control voltage is pure DC, the 1HB41 is the direct fit; the 1BB42 adds AC coil compatibility but shares the same mechanical footprint and terminal layout.

What is the listed depth of 3RT1015-1HB41?

The depth is 72 mm, measured from the DIN rail mounting surface to the front of the contactor.

What wire sizes does the screw terminal accept?

The main circuit terminals accept 2x (0.5 to 1.5 mm²), 2x (0.75 to 2.5 mm²), or up to 2x (0.75 to 4 mm²) solid or stranded copper. AWG equivalents are 2x (20 to 16), 2x (18 to 14), or 1x 12.

Will 3RT1015-1HB41 drop into a panel specified around 3RT1015-1BB42 without rewiring?

Yes, the mechanical footprint, terminal layout, and DIN rail mounting are identical between the two. The only difference is the coil voltage type — the 1HB41 is 24 VDC only, while the 1BB42 accepts 24 VAC/DC. If your control circuit is pure 24 VDC, the 1HB41 is a drop-in replacement.
