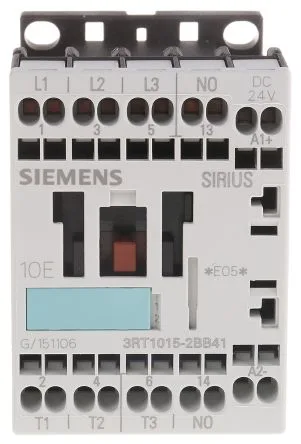

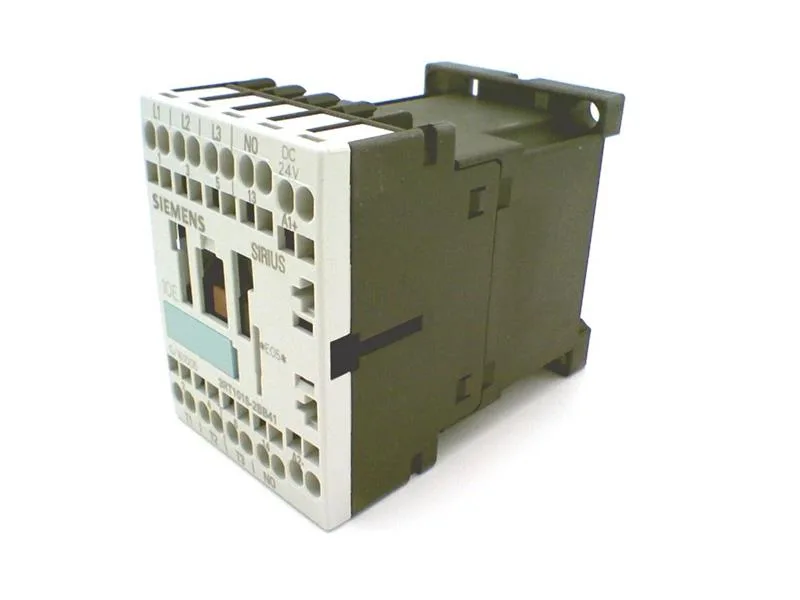

Siemens 3RT1015-2BB41 — Contactors

3RT1015-2BB41 SIRIUS Power Contactor, S00, 24 VDC, 3 kW AC-2

MPN3RT1015-2BB41

Siemens SIRIUS power contactor, size S00, 24 VDC coil, 3 kW rated at 400 V AC-2, spring-loaded terminals, 45 mm width, IP20 front, DIN-rail mount.

$92.58Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RT1015-2BB41 — Identification
ParameterValue
Contactor frame sizeS00
3RT1015-2BB41 — Ratings & Performance
ParameterValue
Rated operational current, AC-12, max.10 A
Rated operational current, AC-4 @ 400 V6.5 A
Rated value @ 400 V3 A
Rated value @ 500 V3.5 kW
Rated value @ 690 V4 kW
Rated value @ 230 V6 A
Rated value @ 24 V10 A
Rated value @ 60 V2 A
Rated value @ 110 V1 A
Rated value @ 220 V0.3 A
3RT1015-2BB41 — Control & Coil
ParameterValue
Control supply voltage typeDC
3RT1015-2BB41 — Contacts & Poles
ParameterValue
Main poles3
Main NO contacts3
Auxiliary contact reliability1 faulty switching per 100 million (17 V, 1 mA)
3RT1015-2BB41 — Protection & Coordination
ParameterValue
Short-circuit coordination type 1, fusefuse gL/gG: 35 A
Short-circuit coordination type 2, fusefuse gL/gG: 20 A
Aux. switch short-circuit protection, fusefuse gL/gG: 10 A
3RT1015-2BB41 — Connection & Mounting
ParameterValue
Main circuit connectionspring-loaded terminals
Aux. / control circuit connectionspring-loaded terminals
Conductor cross-section, solid2x (0.25 ... 2.5 mm²)
Conductor cross-section, solid or stranded2x (0,25 ... 2,5 mm²)
Conductor cross-section, finely stranded w/ ferrule2x (0.25 ... 1.5 mm²)
Mounting methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Side-by-side mountingYes
3RT1015-2BB41 — Durability
ParameterValue
Durability (operating cycles, typ.)30 000 000
Durability with aux. switch block (cycles, typ.)10 000 000
3RT1015-2BB41 — Environmental
ParameterValue
Installation altitude, max.2 000 m
3RT1015-2BB41 — Mechanical
ParameterValue
Width45 mm
Height60 mm
Depth73 mm

Product details

Panel-fit and terminal constraints

The 3RT1015-2BB41 is a SIRIUS S00-frame power contactor — 45 mm wide, 60 mm tall, 73 mm deep — sized for a 35 mm DIN rail (EN 50022) with screw or snap-on fastening. Spring-loaded terminals on both the main and auxiliary/control circuits accept 2x (0.25...2.5 mm²) solid or stranded, or 2x (24...14 AWG). The front face carries IP20, so panel builders can route wiring without finger-safety covers at the operator interface.

Coil and switching duty

Coil is 24 VDC rated, pickup at 0.85x nominal (20.4 V), dropout at 1.1x (26.4 V). Closing and holding power both 3.3 W — the magnet circuit is a DC economized design, so the coil draw does not spike on seal-in. For motor switching: AC-2 duty (slip-ring motors, wound-rotor lifts) is 3 kW at 400 V; AC-4 duty (plugging, inching) is 6.5 A at 400 V. The AC-12 maximum operational current is 10 A for resistive loads on the auxiliary side.

Coordination and environment

Frequently asked questions

Where can I buy 3RT1015-2BB41 and how do I get a price?

This part is sourced to order against an RFQ through independent distribution channels. Submit an RFQ for current availability and pricing — confirmed at quote time.

What is 3RT1015-2BB41's depth?

The depth is 73 mm, with a width of 45 mm and height of 60 mm — fits the S00 frame footprint on a 35 mm DIN rail.

Will 3RT1015-2BB41 drop into a panel specified for 3RT1015-1BB42 without rewiring?

Both are S00-frame contactors on a 35 mm DIN rail. The 3RT1015-2BB41 uses spring-loaded terminals; the 3RT1015-1BB42 uses screw-type terminals. The panel cutout and rail position are identical, but the wiring termination method differs — existing ring or fork lugs for screw terminals may not suit the spring cage. Verify the terminal interface before drop-in replacement.
