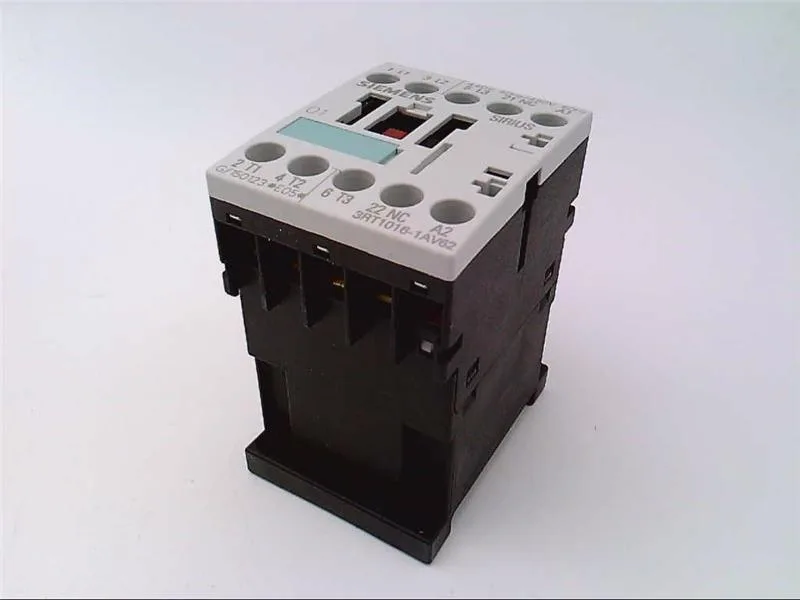

It's rated for 10 A at 24 VDC and carries AC-2/AC-4 motor switching ratings — 4 kW at 400 V AC-2 and 8.5 A at 400 V AC-4. The S00 frame keeps the footprint tight at 45 mm wide, 57.5 mm tall, and 72 mm deep, so it fits comfortably in a standard 35 mm DIN-rail enclosure per DIN EN 50022.
The auxiliary contact ratings span 60 V (2 A), 110 V (1 A), 220 V (0.3 A), and 230 V (6 A), so you can switch pilot devices across a range of control voltages without an interposing relay. Side-by-side mounting is allowed, which saves rail space in multi-contactor groups. The IP20 finger-safe protection on the front and terminals means it's suited for enclosed panels where operators reach in for maintenance — no additional shrouding needed for basic touch protection.
Main circuit terminals accept screw-type connections: 2x (0.5...1.5 mm²), 2x (0.75...2.5 mm²), or max 2x (0.75...4 mm²) solid/stranded, with AWG equivalents 2x (20...16), 2x (18...14), and 1x 12. For Type 2 coordination (no-weld), use a gL/gG fuse rated 20 A; for Type 1 coordination (welding allowed but no fire risk), the fuse can go up to 35 A. That gives you flexibility depending on whether your safety philosophy prioritizes contactor reusability or upstream protection simplicity.
